INSTALLATION INSTRUCTIONS
INSTRUCCIONES DE INSTALACIÓN / INSTRUCTIONS D‘INSTALLATION
READ AND SAVE THESE INSTRUCTIONS
These instructions are provided for your safety.
It is very important that they are read carefully
and completely before beginning installation
of the lighting xture.
•
• To avoid possible electrical shock, before
installing your light xture, disconnect the power
by turning off the circuit breakers to the outlet box
associated with the wall switch location.
• The lighting xture must be grounded. If the
ground wire for the installation site is not present,
immediately STOP installation and consult a
qualied electrician.
• All wiring must be in accordance with national
and local electrical codes ANSI/NFPA 70. If you
are unfamiliar with wiring or in doubt, consult a
qualied electrician.
LEA Y GUARDE ESTAS INSTRUCCIONES
Estas instrucciones se proporcionan para
su seguridad. Es muy importante leerlas
detenidamente y completamente antes de
comenzar la instalación de la lámpara.
•
•
Para evitar una posible descarga eléctrica, antes
de instalar su lámpara, desconecte la energía
apagando los interruptores automáticos (breakers)
que alimentan la caja de salida asociada con la
ubicación del interruptor de pared.
• L‘appareil d‘éclairage doit être mis à la terre.
Si le l de terre du lieu d‘installation n‘est pas
présent, ARRÊTEZ immédiatement l‘installation
et consultez un électricien qualié.
• Todo el cableado debe realizarse de acuerdo
con los códigos eléctricos locales y nacionales
ANSI/NFPA 70. Si no está familiarizado con
el cableado, o si tiene duda, consulte a un
electricista calicado.
LISEZ ET CONSERVEZ CES INSTRUCTIONS
Ces instructions sont fournies pour votre
sécurité. Il est très important de les lire
attentivement dans leur intégralité avant
d‘entreprendre l‘installation du luminaire.
•
• Pour éviter tout choc électrique, avant
d‘installer le luminaire, coupez le courant en
éteignant les disjoncteurs de la boîte électrique
associée à l‘interrupteur mural.
• Le luminaire doit être mis à la terre. Si le l
de terre du lieu d‘installation n‘est pas présent,
ARRÊTER immédiatement l‘installation et
consulter un électricien qualié.
• Tout le câblage doit être conforme aux codes
électriques nationaux et locaux en vigueur et
à la norme ANSI/NFPA70. Si vous n‘avez pas
l‘habitude de faire ce câblage ou en cas de doute,
adressez-vous à un électricien qualié.
ENGLISH
Squire Manor
Here are the
tools you‘ll
need to
complete your
installation:
Estas son las
herramientas
que usted
necesitará para
completar su
instalación:
Voici les outils
dont vous
aurez besoin
pour réaliser
l‘installation:
Ladder
Escalera
Échelle
Pliers
Alicates
Pince
Wire Strippers
Pelacables
Pince à dénuder
Twist or tape wire
ends together to make
it easier to thread
through downrod.
Hunter Pro Tip:
In order to use a 12in rod by itself
you must rst remove the post
from the 6in rod and install it on
one of the ends of the 12in rod.
KC04601119
KC04602214
Brushed Nickel
Níquel Pulido
Nickel Brossé
Matte Black
Negro Mate
Noir Mat
19090
19091
Part #/Pieza #/Pièce #
Hardware Service Kit / Kit De Mantenimiento Del Equipo /
Trousse De Maintenance Quincaillerie
Finish/Finish/FiniModel/Modelo/Modèle
Drill 9/64" pilot holes in
support structure to aid in
securing light xture.
Drill
Taladro
Foret
Screwdriver
Destornilladore
Tournevis
Fixture weight ±2 lbs:
Peso ±2 lbs:
Poids xe ±2 lbs:
5 Light Linear Chandelier
5 Luz Lámpara Lineal
5 Lumière Chandelier Linéaire
6.31 lbs (2.86 kg)

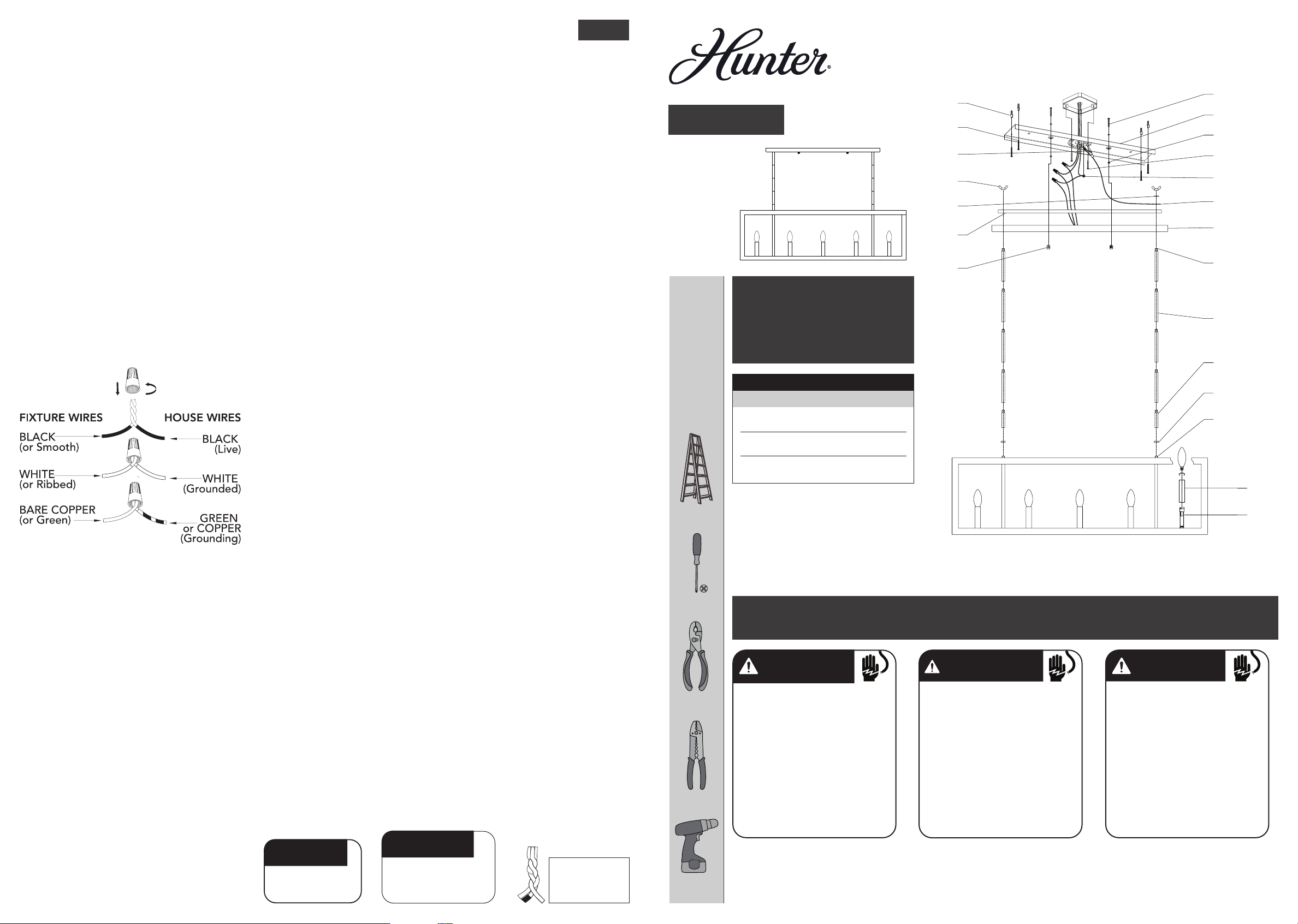

PREPARING FOR INSTALLATION
Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old
xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the bag.
Remove decorative nuts (N) from mounting screws (A). Mounting plate (B) contains several pairs of threaded holes. Find
the pair of holes that matches the spacing in the holes on the xture‘s canopy. Attach two mounting screws (A) to the
mounting plate (B). Tighten nuts (C) to hold the screws in place. Put the hollow rubber plug (H) inside the hole in the
ceiling, then insert the tapping screw (I) through the mounting plate (B) into the rubber plug (H). Place the mounting
plate (B) over the junction box so that mounting screws (A) and nuts (C) are visible. Pull the house wires through the
center of mounting plate (B). Secure mounting plate (B) to the junction box by tightening the screws (D).
ASSEMBLING THE FIXTURE
There are 4 12-inch rods (P), and 1 6-inch rod (Q) included for each side of the xture. Determine the correct number
of rods needed for proper hanging height. To lengthen the xture, add additional rods. To shorten the xture, trim the
wires to desired length. Leave at least 8 to 10 inches of wire in addition to the desired length and slide any excess rods
off the xture‘s wiring to discard. Keep in mind that you must use at least one rod to hang the xture. Thread the wires
through the rods and pull the wires until taut before connecting the rods together. Place cup (R) onto threaded post (S)
and screw rod onto threaded post (S) on the xture. Place reinforcing plate (M) inside canopy (G) and the canopy (G) over
the threaded post (O) of the top rod. Put one side of threaded post (O) though the wirerope noose (F) and washer (L). Lock
the reinforcing plate and canopy by screwing wingnut (K) onto threaded post (O). Hide wirerope inside the canopy (G).
Attach screw collar loop (J) onto mounting plate (B).
CONNECTING THE WIRES
Have a helper support the xture‘s weight while completing the wiring.
Attach the xture‘s wires to the power supply wires from the junction
box. Connect black to black (Live); white to white (grounded); grounding
to grounding (green or copper). Twist the ends of the wire pairs together.
Then, twist on a wire connector. Make sure all twists are in the same
direction. Loop xture‘s ground wire around grounding screw (E) and
tighten. If there is no ground wire (green or copper) from the junction
box, contact a qualied electrician.
FINISHING THE INSTALLATION
Raise canopy (G) to mounting plate (B) and position mounting screws (A) so that they protrude through the openings of
canopy (G). Secure canopy (G) in place with decorative nuts (N). Slide candle sleeves (T) onto sockets (U). Install light bulb
(not included) in accordance with the xture‘s specications. Do not exceed the recommended wattage. Your installation
is now complete. Turn on the power and test the xture.
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light
and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
19090
19091
©2020 Hunter Fan Co. ML036
r_112320
Part #/Pieza #/Pièce #
Hardware Service Kit / Kit De Mantenimiento Del Equipo /
Trousse De Maintenance Quincaillerie
Finish/Finish/FiniModel/Modelo/Modèle
For Models:
Para los Modelos:
Pour les Modèles:
H
I
K
L
M
N
E
D
C
B
A
G
F
J
O
R
P
S
Q
T
U
