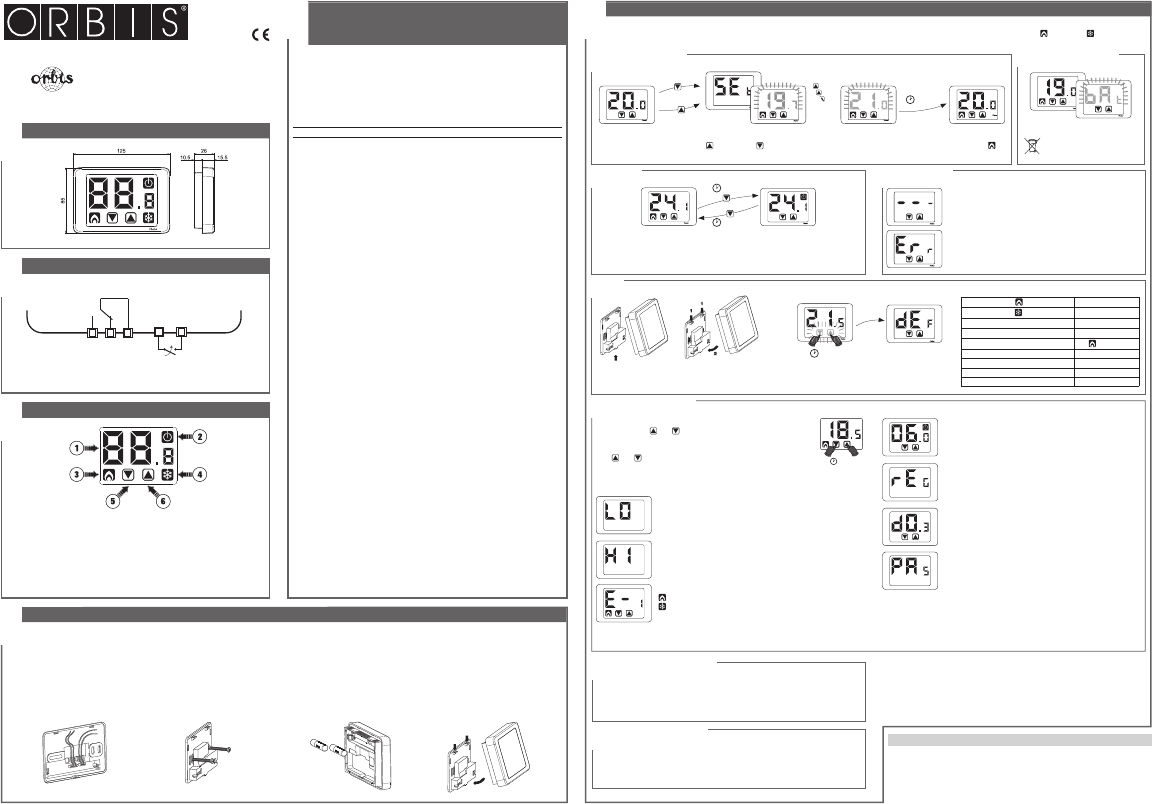

OPERATIONUser Manual

ELECTRONIC TOUCH SCREEN THERMOSTATS

 Read all instructions carefully

DIMENSIONS

WIRING DIAGRAMS

LEGEND

INSTALLATION

2

Advanced programming

Reset

Setpoint modification

Depleted batteries signal

Error messages

Night reduction temperature

Backlighting management

 “Environment temperature” Field

 “Off” Field

 “Heating activation” Field

 “Cooling activation” Field

 Key “▼” decreases the selected field

 Key “▲” increases the selected field

Attention: the keys are active only if the instrument is installed on wall-mounted base.

COM

NA

NC

EXTERNAL

CONTACT

Thalos

With external contact closed:

Setpoint = Setpoint programmed - 3°C

Switch off

Normal operation

Note: in heating mode (winter), if the Thalos is off, it regulates the antifreeze Toff

temperature in order to prevent freezing of the system.

Toff can have values from 1 to 10° C or be excluded; in this case any minimum

temperature is guaranteed.

Replace the batteries as soon

as possible! Dispose of the

batteries in the appropriate

recycling containers.

Occurs in case of probe failure.

In this case the Thalos activates the receiver for 10 minutes

every 4 hours (if the antifreeze temperature Toff is active)

Occurs for the following values of measured temperature:

t < 0°C

t >50°C

Unhook and re-hook the thermostat from the base. Press the keys for at least 3 seconds during the flashing.

Modification of the desired temperature (setpoint),

to increase to decrease

Normal operation

heating on ( )

press

or

3 sec.

3 sec.

F

19.8

19.9

...

Default values

Heating setpoint

21°C

Cooling setpoint

25°C

Minimum settable setpoint - L0

2°C

Maximum settable setpoint - Xi

35°C

Operating mode

(heating)

Antifreeze temperature 6°C

Regulation type On /Off

Differential 0.3°C

Password - - - (desabled)

3 sec.

3 sec.

Wall mounting touch screen thermostat for temperature control both in heating

and cooling.

It performs actions of type 1B and is intended for operating in environments

Pollution Degree 2 and Overvoltage Category III (EN60730-1).

Thalos has a monochrome backlit display and an input where it is possible to

connect an external contact suitable to reduce the setpoint of 3°C.

Model Description

Thalos Touchscreen thermostat batteries with digital input

SAFETY WARNINGS

During product installation and operation it is necessary to observe the

following instructions:

1) The instrument must be installed by a qualified person, in strict compliance

with the connection diagrams.

2) Do not power or connect the instrument if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without appropriate

tools must be guaranteed.

4) The instrument must be installed and activated in compliance with current

electric systems standards.

5) Before accessing the connection terminals, verify that the leads are not live.

TECHNICAL SPECIFICATIONS

• Power supply:

– 2 alkaline batteries 1.5V (AAA type)

– battery life: 12 months

– battery charge level indication

• Wall mounting (or to coverage three-module in built box)

• Terminals:

– 3 terminals for 1.5 mm

2

cable section for bistable output relay 5A / 250Vac

– 2 terminals for 1.5 mm

2

cable section for digital input (3°C setpoint reduction)

• Operating mode: summer/winter/off (with antifreeze operating mode)

• Password protected lock keypad

• Regulation type:

– on/off with settable differential (0.1 ÷ 1°C)

– P8 proportional with 0.8°C band (-0.3 ÷ +0.5°C) and period 8 minutes

– P15 proportional with 1.5°C band (-0.7 ÷ +0.8°C) and period 15 minutes

• Measurement precision: ± 0.5 °C

• Measurement temperature resolution: 0.1 °C

• Settable setpoint range: 2°C ÷ +35°C

• Operating temperature: 0 °C ÷ +50 °C

• Storage temperature: -10 °C ÷ +65 °C

• Operating humidity: 20÷90% non-condensing

• Degree of protection: IP40

• Insulation: reinforced among accessible parts (frontal) and all other terminals

During the standard operation the thermostat displays the detected temperature value and the relay status is identified by the symbol

(heating) or (cooling).

REFERENCE STANDARDS

Compliance with Community Directives:

2006/95/EC (Low voltage)

2004/108/EC (E.M.C.)

is declared in reference to the harmonized standard:

• EN 60730-2-9

Minimum settable setpoint - L0

It’s the minimum value settable as setpoint.

Settable values: 2 ÷ 35°C

Maximum settable setpoint - KI

It’s the maximum value settable as setpoint.

Settable values: L0 ÷ 35°C

Operating mode - E-I

if connected to the boiler (heating)

if connected to a cooling system

• Thalos series thermostats are designed for wall mounting installation. Alternatively, they can be installed to cover the three-module in built box.

• Install the thermostat at a height of about 1.5 m above the floor, away from direct sunlight, away from doors, windows, heat sources, locations with excess or total lack of

ventilation.

 Connect the wires to the terminal block

on back of the base, as shown in the

“wiring diagrams”.

 Fix the base on the wall using the

screws supplied.

 Insert the batteries into the battery

compartment on the back of the

thermostat, respecting the indicated

polarity.

 Attach the thermostat to the base, at

first mating teeth on the higher side.

1

1

2

To enter menu Advanced programming keep simultaneously pressed for 5

seconds the keys

and until PR will appear.

The items of the menu are displayed in succession. For each item is

displayed an identity breviation and its relative blinking value. Use the

keys

and to modify the blinking value. After 3 seconds without

touching the keys there is the passage to the following parameter. The

writing END will appear when all parameters are set and the thermostat

returns successively in standard mode saving the effected modifications.

Thalos has got an input to whom to connect an external contact (see wiring diagrams).

With closed contact, the setpoint is reduced by 3 °C than the set one.

The display backlighting is normally OFF and it is enabled (blue color) entering

menu: setpoint modification, advanced programming, pin enter.

THALOS

ORBIS TECNOLOGÍA ELÉCTRICA, S.A.

Lérida, 61 E–28020 MADRID

Teléfono:+ 34 91 5672277; Fax:+34 91 5714006

E-mail: info@ orbis.es

http://www.orbis.es

V3IS00764-010

Antifreeze temperature - Toff

Minimum temperature maintained with Thalos off

(see box «Switch off»).

Settable values: 1 ÷ 10 °C or --- (excluded function)

Regulation type - REG - (only in heating)

0 = on/off with settable differential

P8 = proportional with band 0.8°C and period 8 minutes

P15 = proportional with band 1.5°C and period 15 minutes

Differential - d0.3 - (only for on/off regulation)

Differential (or hysteresis) for temperature regulation

Settable values: 0.1 ÷ 1°C

Password for keypad lock - PAS

Set a value between 001 and 999 to activate the keypad lock.

Set “---” to disable the lock.

If the keypad lock is active, pressing one key LoC appears

and the password is required. If it’s properly inserted the

keyboard is unlocked for the next 30 seconds.

Thalos

Thalos

Thalos

Thalos

Thalos

Thalos

Thalos

5 sec.
