Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could

affect the features and operation of the hob.

The thickness of the supporting surface

should be

taken into account when choosing

the length of the

screws for the fixing hooks:

30 mm thick: 23 mm screws

40 mm thick: 13 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4

alignment springs in the holes provided at the

central point of each side of the hob.

2. Place the hob

in the cavity, make sure it is in a

central position and push down on the whole

perimeter until the hob is stuck to the supporting

surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into the lower

edges of the hob, using the

long pointed screws to fix them in place, until the

glass is stuck to the supporting surface.

 The screws for the alignment springs must remain

accessible.

 In order to adhere to safety standards, the

appliance must not come into contact with electrical

parts once it has been installed.

 All parts which ensure the safe operation of the

appliance must not be removable without the aid of

a tool.

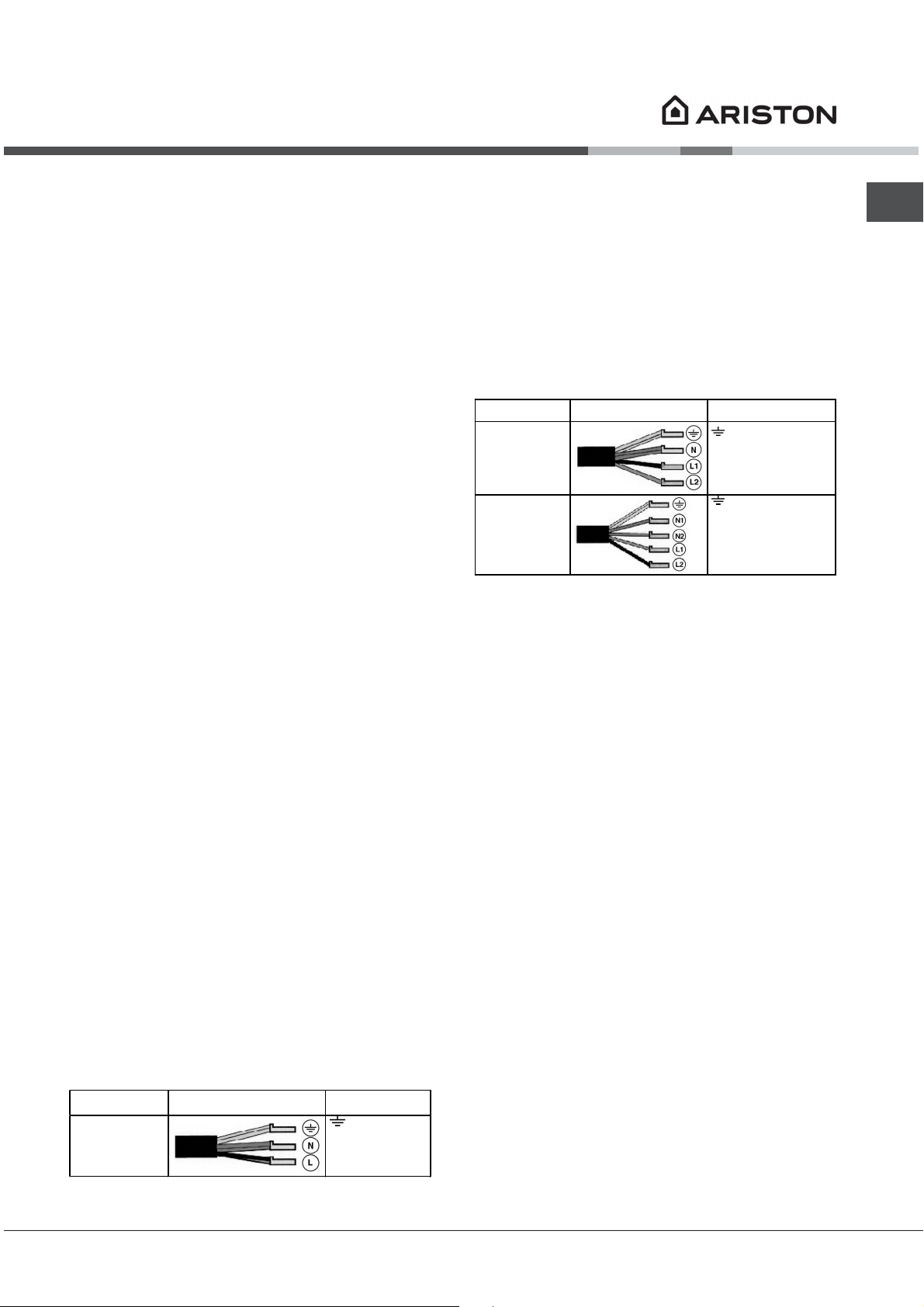

Electrical connection

 The electrical connection for the hob and for any

built-in oven must be carried out separately, both for

safety purposes and to make extracting the oven

easier.

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with

the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

220-240V 1+N ~

50 Hz

: yellow/green;

N: the two blue wires

together

L: brown and black

together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

 400V - 2+N ~ 50 Hz

 220-240V 3 ~ 50 Hz

 400V 3 - N ~ 50 Hz

 400V - 2+2N ~ 50 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Tensión tipo y

frecuencia de la red

Cable eléctrico Conexión de los cables

400V - 2+N ~

50 Hz

220-240V 3 ~

50Hz

400V 3-N~ 50Hz

: amarillo/verde;

N: los 2 cables azules juntos

L1: negro

L2: marrón

400V - 2+2N ~

50 Hz

: amarillo/verde;

N1: azul

N2: azul

L1: negro

L2: marrón

Connecting the electricity supply cable to the

mains

If the appliance is being connected directly to the

electricity mains an omnipolar switch must be

installed with a minimum opening of 3 mm between

contacts.

 The installer must ensure that the correct electrical

connection has been made and that it is fully

compliant with safety regulations.

Before connecting the appliance to the power

supply, make sure that:

 The appliance is earthed and the plug is

compliant with the law.

 The socket can withstand the maximum power of

the appliance, which is indicated on the data

plate located on the appliance itself.

 The voltage falls within the range of values

indicated on the data plate.

 The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

 Once the appliance has been installed, the power

supply cable and the electrical socket must be

easily accessible.

 The cable must not be bent or compressed.

 The cable must be checked regularly and replaced

by authorised technicians only.

 The manufacturer declines any liability should

these safety measures not be observed.
