Manual de uso Campbell Hausfeld AL2130 Sistema de pintura

Manual de uso

Spray Guns for Airless Paint Sprayers

3

General Safety Information

(Cont.)

NOTE: If gun sprays while in the locked

position follow instructions in

Maintenance section for trigger lock.

12. Verify that all connections are

secure before operating. Do not use

pliers to tighten or loosen high

pressure connections.

13. Know how to stop your unit and

bleed pressure quickly. Be thor-

oughly familiar with the controls.

To reduce the risk of

injury:

1. Do not spray acids, corrosive mate-

rials, toxic chemicals, fertilizers, or

pesticides. Using these materials

could result in death or serious

injury.

2. Always wear appropriate gloves,

eye protection, and a respirator or

mask when painting.

3. Always work in a clean environ-

ment. Do not aim the spray gun at

any dust or debris.

4. Do not operate or spray near chil-

dren. Keep children, pets, and visi-

tors away from equipment and

work area at all times.

5. Do not over reach or stand on an

unstable support. Keep effective

footing and balance at all times.

6. Stay alert and watch what you are

doing.

7. Do not operate the equipment

when fatigued or under the influ-

ence of drugs or alcohol.

Preparation

Airless painting systems, unlike most

other power tools, require additional

care to ensure proper working order.

CONSULT YOUR AIRLESS PAINT

SPRAYER OWNER'S MANUAL FOR

OPERATING INSTRUCTIONS.

!

WARNING

Spraying Instructions

Professional looking results can be

obtained by following the spray tips

below.

1. Keep the gun perpendicular to the

surface.

Always hold the gun perpendicular

to the surface with the tip approxi-

mately 12” from the surface. If held

at an angle (up and down or side to

side), paint will build up unevenly,

leave the work splotchy, and cause

excessive overspray (See Figure 1).

2. Move with a smooth arm stroke

Move the gun at a steady, even

pace while keeping the gun perpen-

dicular to the surface (See Figures 1

& 2). Do not fan the gun. Fanning

the gun will cause excessive over-

spray and uneven coverage (See

Figure 2).

3. Start moving the gun before triggering

To get a smooth overlap and pre-

vent initial paint buildup, start your

stroke movement before pulling the

trigger. Release the trigger before

stopping at the end of the stroke

(See Figure 3).

NOTE: To assure uniform paint coverage,

overlap each stroke by 20% - 30% and

use two coats with a cross pattern (one

coat horizontal, second coat vertical).

HOW TO CHANGE SPRAY TIPS:

It may be necessary to change spray tips

during a paint job. Follow these steps

for safe, easy tip changes.

1. Depressurize and turn off unit per

manufacturer’s instructions.

2. Engage gun trigger lock.

3. Pull red tip insert

out of spray base

and replace with differ-

ent tip, fully inserting tip

into base.

HOW TO ATTACH ROLLER

ACCESSORY:

1. Depressurize and turn off unit per

manufacturer’s instructions.

2. Engage gun trigger lock.

3. Remove spray base, tip, seal and

washer assembly.

4. Attach roller

accessory

(AL2275

shown) to air-

less spray gun.

If needed use

thread adapter and washer between

roller and spray gun as shown.

INTERMITTENT USE

If you are spraying and decide to stop for

several minutes, lock the spray gun trig-

ger and submerge the tip in a container

of suitable solvent (See Figure 4). This will

prevent paint from hardening in the tiny

spray opening and clogging the tip. Be

sure to release the pressure in the

system and turn the unit off accord-

ing to the manufacturer’s instruc-

tions.

CLEARING CLOGS

REVERSIBLE TIP: (Included)

1. Rotate the tip to the clean position

(See Figure 5).

12”

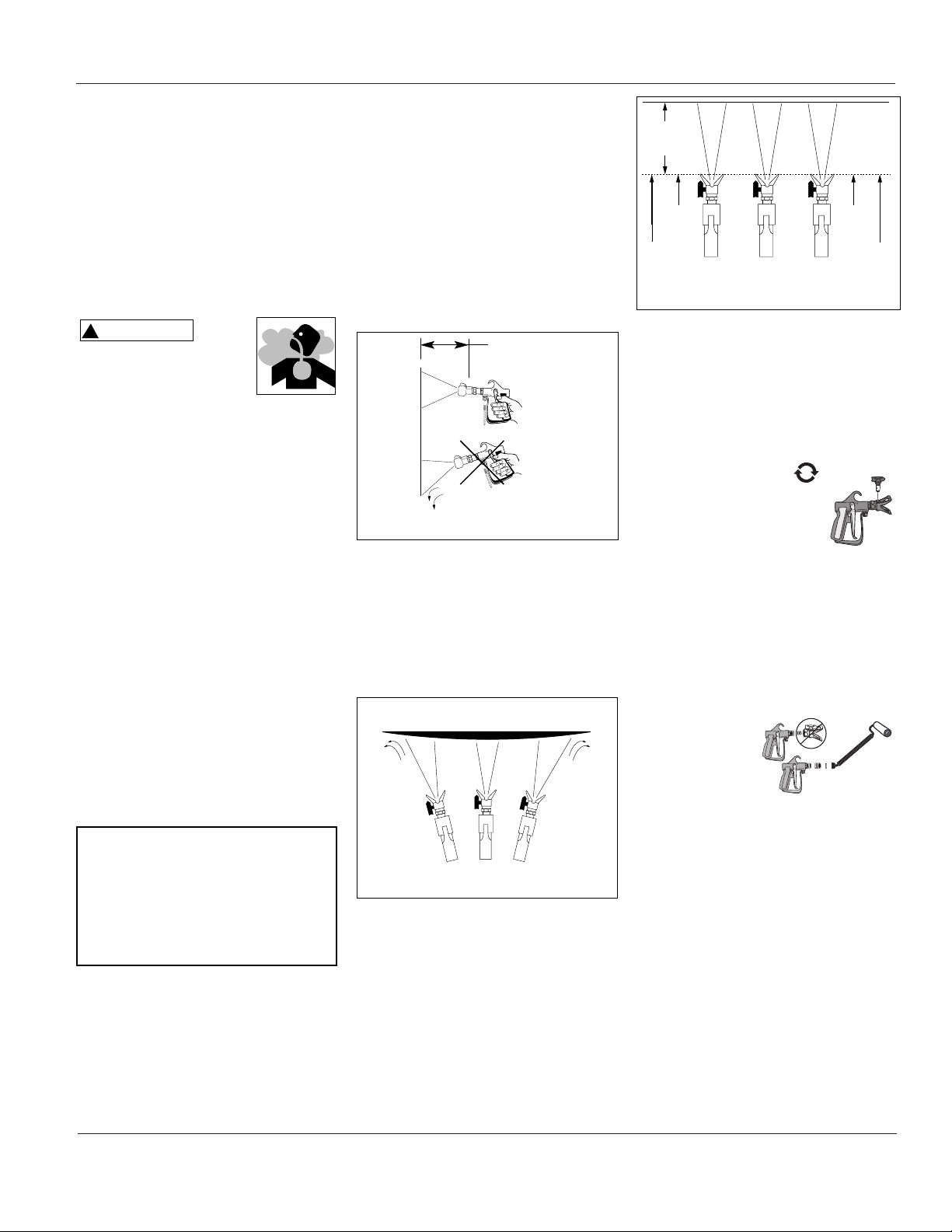

Figure 1 - Holding the Spray Gun

Approx.

10-12”

Start

Stroke

Pull

Trigger

Release

Trigger

End

Stroke

Figure 3 - Proper Way to Trigger

Spray Gun

Thin Coat

Thin Coat

Heavy

Coat

Over-

spray

Over-

spray

Figure 2 - Result of Flexing Wrist

While Spraying

INCORRECT

www.chpower.com

FAILURE TO FOLLOW

THESE INSTRUCTIONS

CAN RESULT IN SERIOUS

INJURY INCLUDING

DEATH.
