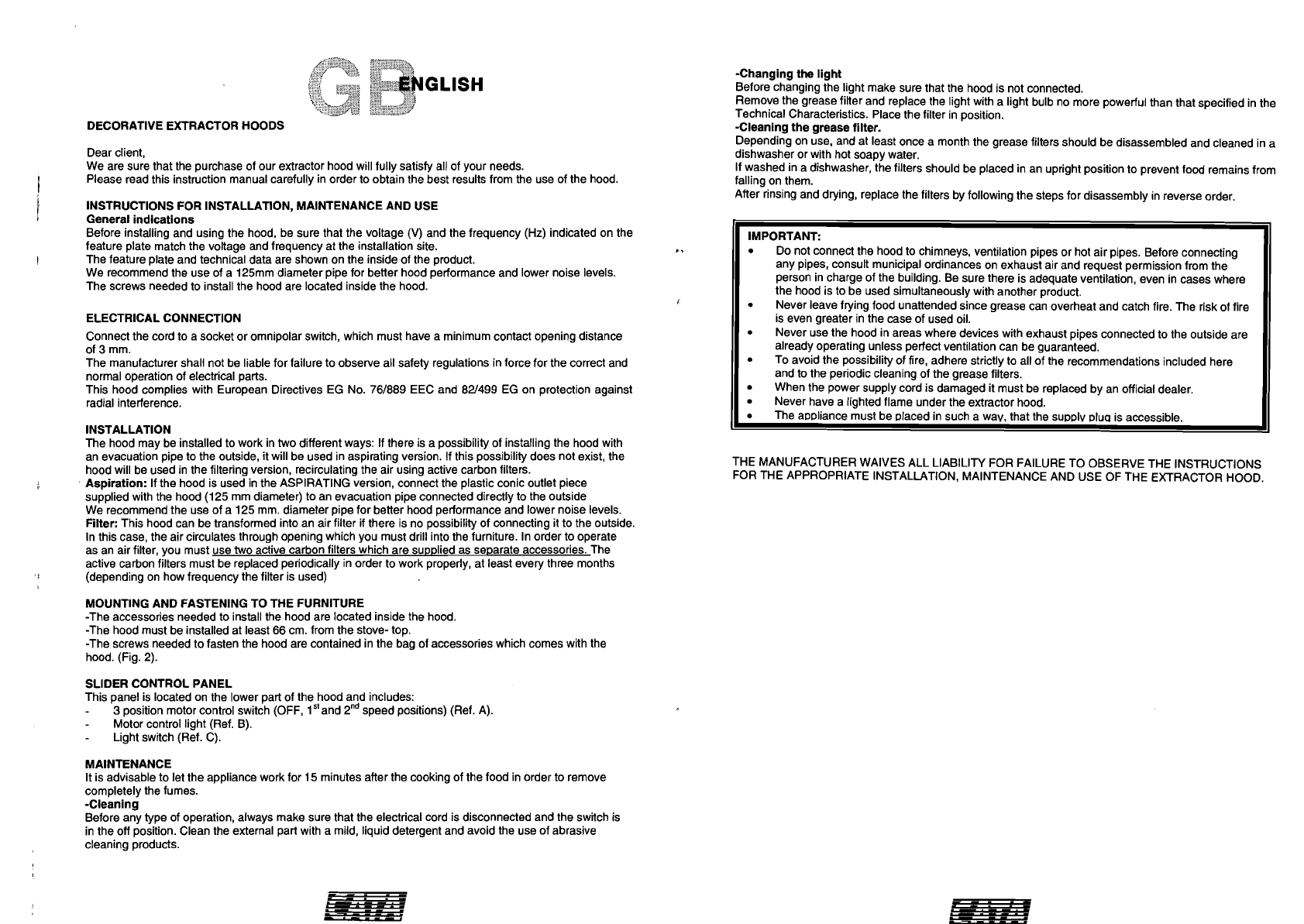

DECORATIVE EXTRACTOR HOODS
Dear client,
We are sure that the purchase of our extractor hood will fully satisfy all of your needs.
Please read this instruction manual carefully in order to obtain the best results from the use of the hood.
INSTRUCTIONS FOR INSTALLATION, MAINTENANCE AND USE
General indications
Before installing and using the hood, be sure that the voltage (V) and the frequency (Hz) indicated on the
feature plate match the voltage and frequency at the installation site.
The feature plate and technical data are shown on the inside of the product.
We recommend the use of a
125mm diameter pipe for better hood performance and lower noise levels.
The screws needed to install the hood are located inside the hood.
ELECTRICAL CONNECTION
Connect the cord to a socket or omnipolar switch, which must have a minimum contact opening distance
of
3
mm.
The manufacturer shall not be liable for failure to
observe all safety regulations in force for the correct and
normal operation of electrical parts.
This hood complies with European Directives EG No. 761889 EEC and
821499 EG on protection against
radial interference.
INSTALLATION
The hood may be installed to work in two different ways: If there is a possibility of installing the hood with
an evacuation pipe to the outside, it will be used in aspirating version. If this possibility does not exist, the
hood will be used in the filtering version, recirculating the air using active carbon filters.
Aspiration: If the hood is used in the
ASPIRATING version, connect the plastic conic outlet piece
supplied with the hood (125 mm diameter) to an evacuation pipe connected directly to the outside
We recommend the use of a 125 mm. diameter pipe for better hood performance and lower noise levels.
Filter: This hood can be transformed into an air filter if there is no possibility of connecting it to the outside.
In this case, the air circulates through opening which you must drill into the furniture. In order to operate
as an air filter, you must use two active carbon filters which are
SuDDlied as separate accessories. The
active carbon filters must be replaced periodically in order to work properly, at least every three months
(depending on how frequency the filter is used)
MOUNTING AND FASTENING TO THE FURNITURE
-The accessories needed to install the hood are located inside the hood
-The hood must be installed at least 66 cm. from the stove- top.
-The screws needed to fasten the hood are contained in the bag of accessories which comes with the
hood. (Fig. 2).
SLIDER CONTROL PANEL
This panel is located on the lower part of the hood and includes:
-
3
position motor control switch (OFF, lS'and 2nd speed positions) (Ref. A).
-
Motor control light (Ref. 6).
-
Light switch (Ref.
C).
-Changing the light
Before changing the light make sure that the hood is not connected.
Remove the grease filter and replace the light with a light bulb no more powerful than that specified in the
Technical Characteristics. Place the filter in position.
-Cleaning the grease filter.
Depending on use, and at least once a month the grease filters should be disassembled and cleaned in a
dishwasher or with hot soapy water.
If washed in a dishwasher, the filters should be placed in an upright position to prevent food remains from
falling on them.
After rinsing and drying, replace the filters by following the steps for disassembly in reverse order.
IMPORTANT:
Do not connect the hood to chimneys, ventilation pipes or hot air pipes. Before connecting
any pipes, consult municipal ordinances on exhaust air and request permission from the
person in charge of the building. Be sure there is adequate ventilation, even in cases where
the hood is to be used simultaneously with another product.
Never leave frying food unattended since grease can overheat and catch fire. The risk of fire
is even greater in the case of used oil.
Never use the hood in areas where devices with exhaust pipes connected to the outside are
already operating unless perfect ventilation can be guaranteed.
To avoid the possibility of fire, adhere strictly to all of the recommendations included here
and to the periodic cleaning of the grease filters.
When the power supply cord is damaged it must be replaced by an official dealer.
Never have a lighted flame under the extractor hood.
1)
The aDDliance must be .laced in such a wav, that the
SUDDIV
DIUO
is accessible.
I1
THE MANUFACTURER WAIVES ALL LIABILITY FOR FAILURE TO OBSERVE THE INSTRUCTIONS
FOR THE APPROPRIATE INSTALLATION, MAINTENANCE AND USE OF THE EXTRACTOR HOOD.
MAINTENANCE
It is advisable to let the appliance work for 15 minutes after the cooking of the food in order to remove
completely the fumes.
-Cleaning
Before any type of operation, always make sure that the electrical cord is disconnected and the switch is
in the off position. Clean the external part with a mild, liquid detergent and avoid the use of abrasive
cleaning products.
