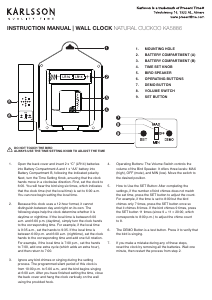

INSTRUCTION MANUAL | WALL CLOCK NATURAL CUCKOO KA5886
1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery
Compartment A and 1 x “AA” size battery into the Battery Compartment B as
symbols indicate.
2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise
direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing
six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you
can start to set the local time.
Because this clock is 12-hour format, it can not tell day or night in 24 hours. The
next two steps are to help the clock to know day time or night time.
3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day
time), just turn the clock hands to the corresponding number. For example, if the
local time is at 9:35 a.m., turn the hands to 9:35.
4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night
time), please turn the clock hands to the corresponding number but add one more
circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00
and add one more hour and turn back again to 7:00.
5. Ignore the bird chiming or singing during the settings.
6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.
The initial bird singing time starts at 6:00 a.m.
7. After setting(s), please close the back cover, hang it vertically on the wall through the
Hook .
8.
9.
How to use SET Button : After the setting is nished, but the bird singing times are
later than or less than the set time, press the SET button to add to the correct time(s). For
example, the set time is 8:00, but the bird only sings 7 times, press the button only once,
you will hear the bird singing 8 times. lf the bird sings 9 times, press this button
11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.
DEMO Button is a testing button. Press it to test the bird is singing or not.
lf you make a mistake during the steps, the clock needs to be reset. Just take out all
batteries. One minute later, please reset the clock from the very beginning and start again
from step 2.
Instruction manual Modern Cuckoo | KA5886
Operating Buttons :
Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX
(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position
you need.
1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery
Compartment A and 1 x “AA” size battery into the Battery Compartment B as
symbols indicate.
2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise
direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing
six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you
can start to set the local time.
Because this clock is 12-hour format, it can not tell day or night in 24 hours. The
next two steps are to help the clock to know day time or night time.
3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day
time), just turn the clock hands to the corresponding number. For example, if the
local time is at 9:35 a.m., turn the hands to 9:35.
4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night
time), please turn the clock hands to the corresponding number but add one more
circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00
and add one more hour and turn back again to 7:00.
5. Ignore the bird chiming or singing during the settings.
6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.
The initial bird singing time starts at 6:00 a.m.
7. After setting(s), please close the back cover, hang it vertically on the wall through the
Hook .
8.
9.
How to use SET Button : After the setting is nished, but the bird singing times are
later than or less than the set time, press the SET button to add to the correct time(s). For
example, the set time is 8:00, but the bird only sings 7 times, press the button only once,
you will hear the bird singing 8 times. lf the bird sings 9 times, press this button
11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.
DEMO Button is a testing button. Press it to test the bird is singing or not.
lf you make a mistake during the steps, the clock needs to be reset. Just take out all
batteries. One minute later, please reset the clock from the very beginning and start again
from step 2.
Instruction manual Modern Cuckoo | KA5886
Operating Buttons :
Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX
(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position
you need.
1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery
Compartment A and 1 x “AA” size battery into the Battery Compartment B as
symbols indicate.
2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise
direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing
six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you
can start to set the local time.
Because this clock is 12-hour format, it can not tell day or night in 24 hours. The
next two steps are to help the clock to know day time or night time.
3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day
time), just turn the clock hands to the corresponding number. For example, if the
local time is at 9:35 a.m., turn the hands to 9:35.
4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night
time), please turn the clock hands to the corresponding number but add one more
circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00
and add one more hour and turn back again to 7:00.
5. Ignore the bird chiming or singing during the settings.
6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.
The initial bird singing time starts at 6:00 a.m.
7. After setting(s), please close the back cover, hang it vertically on the wall through the
Hook .
8.
9.
How to use SET Button : After the setting is nished, but the bird singing times are
later than or less than the set time, press the SET button to add to the correct time(s). For
example, the set time is 8:00, but the bird only sings 7 times, press the button only once,
you will hear the bird singing 8 times. lf the bird sings 9 times, press this button
11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.
DEMO Button is a testing button. Press it to test the bird is singing or not.
lf you make a mistake during the steps, the clock needs to be reset. Just take out all
batteries. One minute later, please reset the clock from the very beginning and start again
from step 2.
Instruction manual Modern Cuckoo | KA5886
Operating Buttons :
Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX
(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position
you need.
1. Open the back cover and insert 2 x “C” (LR14) batteries
into Battery Compartment A and 1 x “AA” battery into
Battery Compartment B, following the indicated polarity.
Next, turn the Time Setting Knob, ensuring that the clock
hands move in a clockwise direction. First, set the clock to
6:00. You will hear the bird sing six times, which indicates
that the clock time (not the local time) is set to 6:00 a.m.
You can now begin setting the local time.
2. Because this clock uses a 12-hour format, it cannot
distinguish between day and night on its own. The
following steps help the clock determine whether it is
daytime or nighttime. If the local time is between 6:00
a.m. and 6:00 p.m. (daytime), simply turn the clock hands
to the corresponding time. For example, if the local time
is 9:35 a.m., set the hands to 9:35. If the local time is
between 6:00 p.m. and 6:00 a.m. (nighttime), set the clock
hands to the corresponding time and add one full rotation.
For example, if the local time is 7:00 p.m., set the hands
to 7:00, add one extra cycle (which adds an extra hour),
and then return to 7:00.
3. Ignore any bird chimes or singing during the setting
process. The programmed silent period of this clock is
from 10:00 p.m. to 5:00 a.m., and the bird begins singing
at 6:00 a.m. After you have nished setting the time, close
the back cover and hang the clock vertically on the wall
using the provided hook.
4. Operating Buttons: The Volume Switch controls the
volume of the Bird Speaker. It offers three levels: MAX
(high), OFF (mute), and MIN (low). Move the switch to
the desired position.
5. How to Use the SET Button: After completing the
settings, if the number of bird chimes does not match
the set time, press the SET button to adjust the count.
For example, if the time is set to 8:00 but the bird
chimes only 7 times, press the SET button once so
that it chimes 8 times. If the bird chimes 9 times, press
the SET button 11 times (since 9 + 11 = 20:00, which
corresponds to 8:00 p.m.) to adjust the chime count
to 8.
6. The DEMO Button is a test button. Press it to verify that
the bird is singing.
7. If you make a mistake during any of these steps,
reset the clock by removing all the batteries. Wait one
minute, then restart the process from step 2.
1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery
Compartment A and 1 x “AA” size battery into the Battery Compartment B as
symbols indicate.
2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise
direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing
six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you
can start to set the local time.
Because this clock is 12-hour format, it can not tell day or night in 24 hours. The
next two steps are to help the clock to know day time or night time.
3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day
time), just turn the clock hands to the corresponding number. For example, if the
local time is at 9:35 a.m., turn the hands to 9:35.
4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night
time), please turn the clock hands to the corresponding number but add one more
circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00
and add one more hour and turn back again to 7:00.
5. Ignore the bird chiming or singing during the settings.
6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.
The initial bird singing time starts at 6:00 a.m.
7. After setting(s), please close the back cover, hang it vertically on the wall through the
Hook .
8.
9.
How to use SET Button : After the setting is nished, but the bird singing times are
later than or less than the set time, press the SET button to add to the correct time(s). For
example, the set time is 8:00, but the bird only sings 7 times, press the button only once,
you will hear the bird singing 8 times. lf the bird sings 9 times, press this button
11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.
DEMO Button is a testing button. Press it to test the bird is singing or not.
lf you make a mistake during the steps, the clock needs to be reset. Just take out all
batteries. One minute later, please reset the clock from the very beginning and start again
from step 2.
Instruction manual Modern Cuckoo | KA5886
Operating Buttons :
Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX
(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position
you need.
DO NOT TOUCH THE BIRD
ALWAYS USE THE TIME SETTING KNOB TO ADJUST THE TIME
1. MOUNTING HOLE
2. BATTERY COMPARTMENT (A)
3. BATTERY COMPARTMENT (B)
4. TIME SET KNOB
5. BIRD SPEAKER
6. OPERATING BUTTONS
7. DEMO BUTTON
8. VOLUME SWITCH
9. SET BUTTON
Descargue el manual en Español (PDF, 31.13 MB)
(Piense en el medioambiente y solo imprima este manual si es de verdad necesario)
Loading…
Puntuación
Dé su opinión de la Karlsson KA5886GR Reloj calificando el producto. ¿Quiere compartir su experiencia con este producto o hacer una pregunta? Deje un comentario en la parte inferior de la página.Más sobre este manual
Entendemos que es bueno tener un manual en papel para tus Karlsson KA5886GR Reloj. Siempre puedes descargar el manual desde nuestro sitio web e imprimirlo tú mismo. Si deseas tener un manual original te recomendamos contactar con Karlsson. Es posible que puedan proporcionar un manual original. ¿Estás buscando el manual de tu Karlsson KA5886GR Reloj en otro idioma? Elija su idioma preferido en nuestra página de inicio y busque el número de modelo para ver si lo tenemos disponible.
Especificaciones
| Marca | Karlsson |
| Modelo | KA5886GR |
| Categoría | Relojes |
| Tipo de archivo | |
| Tamaño del archivo | 31.13 MB |
Todos los manuales para Karlsson Relojes
Más manuales de Relojes
Preguntas frecuentes sobre Karlsson KA5886GR Reloj
Nuestro equipo de atención al cliente busca información útil sobre los productos y responde a las preguntas frecuentes. Si encuentra inexactitudes en las preguntas frecuentes, indíquenoslo usando nuestro formulario de contacto.
¿Qué es el movimiento de cuarzo? Verificado
Los relojes con movimiento de cuarzo son alimentados por una batería. Esta envía una corriente eléctrica a través de cristales de cuarzo, que vibrarán. Estas vibraciones se transmiten al movimiento. Como las vibraciones tienen una frecuencia fija, los relojes con movimiento de cuarzo son extremadamente precisos.
Ha sido de gran ayuda (94) Leer más¿Qué significan las siglas GMT? Verificado
GMT son las siglas en inglés del tiempo medio de Greenwich (a veces llamado UTC, que significa tiempo universal coordinado). Es la hora en el meridano cero, que pasa por Greenwich cerca de Londres.
Ha sido de gran ayuda (79) Leer más¿Qué es un cronógrafo? Verificado
Un cronógrafo es literalmente un “escritor del tiempo”. El término se utiliza para describir los relojes que indican la hora del día, además de medir un cierto intervalo de tiempo, como un cronómetro.
Ha sido de gran ayuda (59) Leer más
Únase a la conversación sobre este producto
Aquí puedes compartir lo que piensas sobre Karlsson KA5886GR Reloj. Si tiene alguna pregunta, primero lea atentamente el manual. Puede solicitar un manual utilizando nuestro formulario de contacto.
