IS-16026-US
* DENOTES FACTORY SETTING
PROGRAMMING MODE
LUMEN ADJUSTMENT

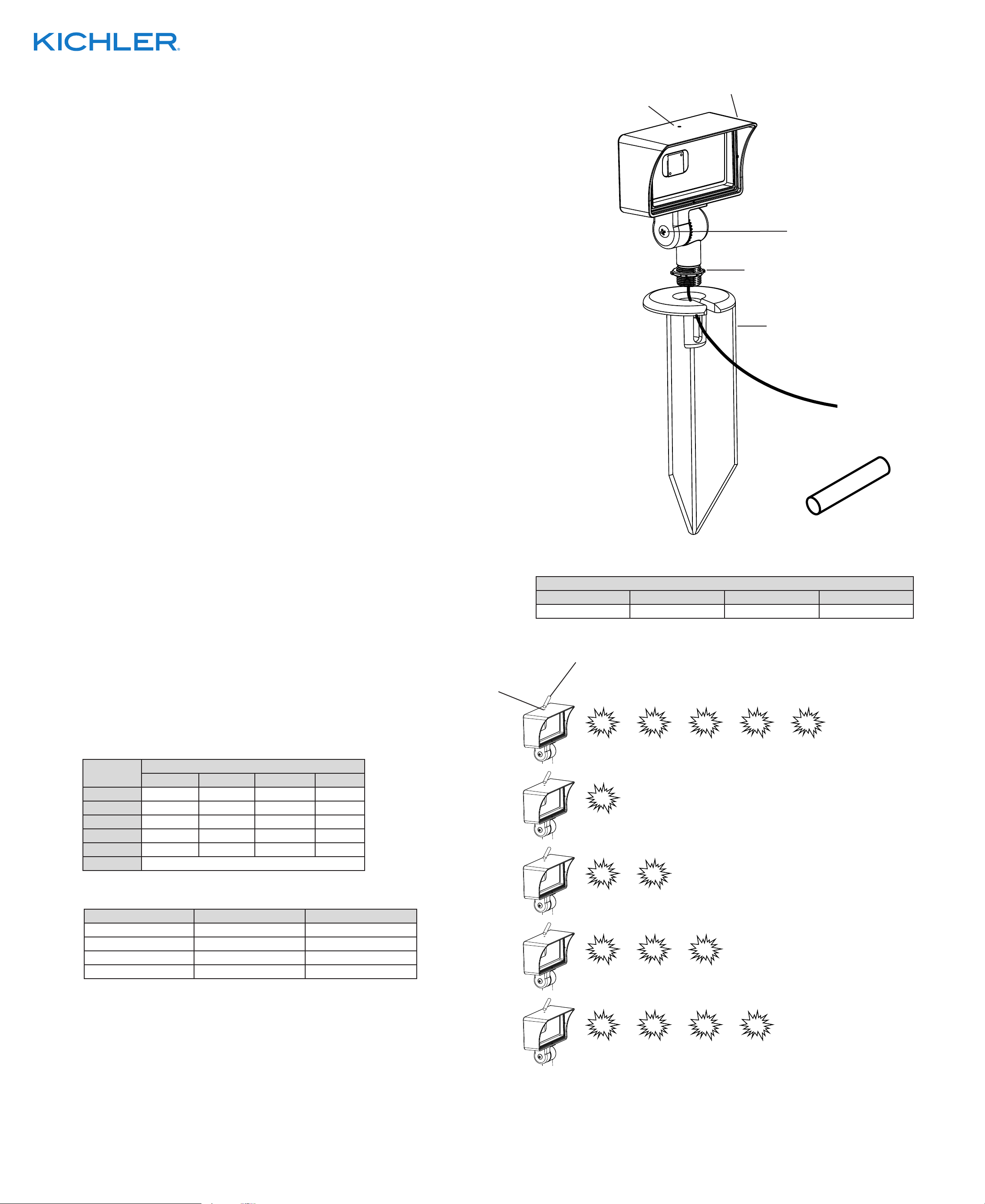

SWITCH LOCATOR
FIXTURE
PHILLIPS HEAD SCREW TO
ADJUST ANGLE OF FIXTURE
LOCKNUT
STAKE
WIRE LEADS
SWITCHING
MAGNET
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
IMPORTANT! PLEASE READ
Lumen Level Table (For 2700K/3000K)
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4
*150 Lm 300 Lm 450 Lm 600 Lm
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.
This xture is intended for installation in accordance with the National Electric Code (NEC) and Local code
specications. Failure to adhere to these codes and instructions may result in serious injury and/or property
damage and will void the warranty. If you are not familiar with code requirements, installation by a certied
electrician is recommended.
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
1) WARNING: This xture is not to be installed within 10 feet (3M) of a pool, spa or fountain.
2) According to the requirements of the National Electric Code (NEC), direct burial rated wire is to be buried a
minimum of 6” [152mm] beneath the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact your local Kichler
®
landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M),15503-BK.
• 10 GA wire can be purchased in length of 250’ (76 M),15504-BK.
• 12 GA wire can be purchased in lengths of 100’ (30 M),15501-BK; 250’ (76 M), 15502-BK; 500’ (152M),
15505-BK; and 1000’ (304 M), 15506-BK.
3) Wiring connections must be made with approved/listed wire connection device(s) suitable for the application. Do
not exceed manufacturers’ wiring combination specications for size and quantity of conductors.
4) The unit low voltage cable integral to the product is intended for shallow burial - maximum 6 inches (152 mm).
5) Low voltage cable shall be protected by routing in close proximity to the luminaire, or next to a building structure
such as a house or deck and not be buried except for a maximum of 6 inches (15.2 cm).
6) The unit low voltage cable shall have the length cut off so that it is connected to a connector within 6 inches
(15.2 cm) from a building structure, a luminaire, or tting.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE
TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, GRASS CLIPPINGS,
MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1) Determine desired location for mounting xture.
2) At desired location, hammer stake into ground. To avoid damage to stake, place a board on top of stake while
hammering. If ground is hard and stake is difcult to install, make a crosscut in ground using a at shovel.
3) Clear away area in ground at wireway slot in top of stake.
4) Lay 12V cable into wireway slot and screw xture into stake. Aim xture in desired direction and secure by
tightening locknut. If necessary, use wrench or pliers for nal tightening of nut.
5) Adjust angle of accent light by loosening Phillips head screw.
6) TURN OFF POWER.
7) Make wire connections using supplied wire connectors following instructions included, or using other approved
wiring connection method (not supplied).
TO CHANGE LIGHT OUTPUT SETTING:
• NOTE: Fixture switches up in terms of lumen settings; it starts at “LEVEL 1” (150 lumens). If this level is desired, no
adjustment is needed.
• Locate the dimple at the top of the xture. (This is called a lumen adjustment switch locator)
• Hold magnet on lumen adjustment switch locator for 1.5 seconds to begin programming mode. Remove magnet.
• Fixture will blink continuously 5x’s at full brightness level and go dark for 2 seconds and then will illuminate at
original factory setting (“LEVEL 1”, 150 lumens).
• To switch lumen settings, magnet must be reapplied to lumen adjustment switch locator for 1.5
seconds and magnet must be removed for 1 second between switching.
• NOTE: xture blinks 1x for “LEVEL 1” (150 lumens), 2x’s for “LEVEL 2” (300 lumens), 3x’s for
“LEVEL 3” (450 lumens), 4x’s for “LEVEL 4” (600 lumens).
• Once the xture is set and magnet removed, it stays in programming mode for 2 minutes.
• After 2 minutes, the memory is set.
• To change the output brightness, return to programming mode by holding magnet on magnetic
locator for 1.5 seconds.
• NOTE: Fixture reverts back to original factory setting when put back into programming mode.
• NOTE: Once the desired setting is set, mark the level (1, 2, 3, or 4) with a marker on xture
under the cowl.
For warranty information please visit: kichler.com/warranty
LUMEN
ADJUSTMENT
SWITCH
LOCATOR
SWITCHING
MAGNET
NOTE: When sizing your transformer please use the highest VA you expect to use depending
on desired lumen level per xture to prevent potentially overloading the transformer.
Best practice is to use VA/wattage buffer of 30% when sizing a transformer to account for xture
lumen adjustments. (ie. 210 VA on 300VA transformer.)
WATTS
(VA)
Wire Gauge/Length (ft/m) per run
10 12 14 16
0 - 20 1860/567 1150/351 730/223 450/137
40 930/283 580/177 370/113 230/70
60 620/189 390/119 240/73 150/46
80 470/143 290/88 180/55 110/34
100 370/113 230/70 140/43 90/27
>100 Consult Technical Support
Wire Gauge/Power/Length Chart
Lumen Level VA WATTS
1 3.2 2.0
2 6.0 4.1
3 9.5 6.7
4 13.0 9.4
Fixture Load Chart
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC INFORMATION
ORIGINAL
PROGRAMMING
MODE
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
REV 3-AUG-2020
