3. Now you are ready to connect the copper tubing. Use ¹⁄₄"

(6.35 mm) OD soft copper tubing for the cold water supply.

■ Ensure that you have the proper length needed for the

job. Be sure both ends of the copper tubing are cut

square.

■ Slip compression sleeve and compression nut on copper

tubing as shown. Insert end of tubing into outlet end

squarely as far as it will go. Screw compression nut onto

outlet end with adjustable wrench. Do not overtighten.

4. Place the free end of the tubing into a container or sink, and

turn on main water supply and flush out tubing until water is

clear. Turn off shutoff valve on the water pipe.

IMPORTANT: Always drain the water line before making the

final connection to the inlet of the water valve to avoid

possible water valve malfunction.

5. Bend the copper tubing to meet the water line inlet which is

located on the back of the ice maker cabinet as shown.

Leave a coil of copper tubing to allow the ice maker to be

pulled out of the cabinet or away from the wall for service.

Rear View

6. Remove and discard the short, black plastic tube from the

end of the water line inlet.

7. Thread the nut onto the end of the tubing. Tighten the nut by

hand. Then tighten it with a wrench two more turns. Do not

overtighten.

NOTE: To avoid rattling, be sure the copper tubing does not

touch the cabinet’s side wall or other parts inside the cabinet.

8. Install the water supply tube clamp around the water supply

line to reduce strain on the coupling.

9. Turn shutoff valve ON.

10. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

Drain Pump Installation

(on some models)

NOTES:

■ Connect drain pump to your drain in accordance with all state

and local codes and ordinances.

■ It may be desirable to insulate drain tube thoroughly up to

drain inlet to minimize condensation on the drain tube.

Insulated tube kit Part Number W10365792 is available for

purchase.

■ Drain pump is designed to pump water to a maximum height

of 10 ft (3 m). Use only Whirlpool approved drain pump kit

Part Number 1901A.

■ Do not connect the outlet end of the drain tube to a closed

pipe system to keep drain water from backing up into the ice

maker.

Kit Contains:

■ Drain pump kit Part Number 1901A

■ ⁵⁄₈" ID x 5¹⁄₈" drain tube (ice maker bin to drain pump reservoir

inlet)

■ ¹⁄₂" ID x 10 ft (3 m) drain tube hose (drain pump discharge to

household drain)

■ ⁵⁄₁₆" ID x 32" (81 cm) vent tube (drain pump reservoir vent to

ice maker cabinet back)

■ Cable clamps (secures vent tube to back of ice maker) (3)

■ #8-32 x ³⁄₈" pump mounting screws (secures drain pump to

baseplate and clamps to back of ice maker) (5)

■ ⁵⁄₈" small adjustable hose clamp (secures vent to drain pump)

■ ⁷⁄₈" large adjustable hose clamp, (secures drain tube to ice

maker bin and drain pump reservoir inlet) (3)

■ Rear panel (2)

■ Instruction sheet

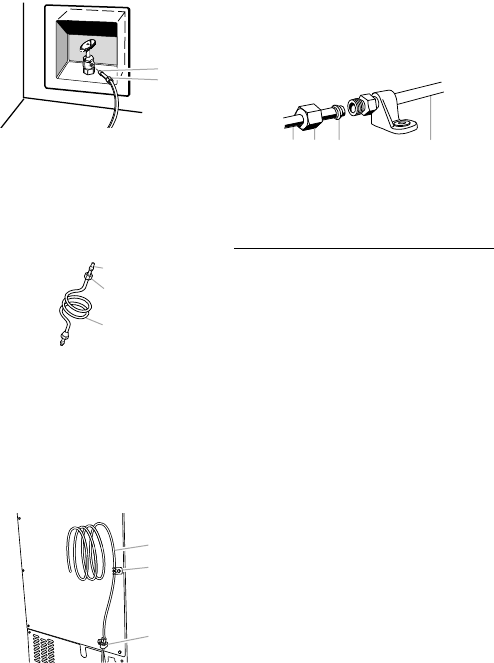

A. Bulb

B. Nut

A. Compression sleeve

B. Compression nut

C. Copper tubing

A. Copper tubing

B. Water supply tube clamp

C. Inlet water tube clamp and

supply line connector

A

B

B

C

A

A

C

B

A. Line to ice maker

B. Nut (purchased)

C. Ferrule (purchased)

D. Supplied line from ice maker

DA B C
