Manual de uso Orbit 94066 Contador de agua

Manual de uso

START

INTERVAL

DURATION

9

0

6

0

3

0

1

5

1

0

1

2

0

O

F

F

O

N

2

m

i

n

5

3

r

d

2

n

d

D

A

I

L

Y

1

2

h

r

8

h

r

4

t

h

7

t

h

O

N

C

E

2

h

r

4

h

r

Features

• Two rotary dials for setting the watering interval and

watering duration.

• Battery operated (three AA), not included.

• Ten watering interval options (once, 2 hr, 4 hr, 8 hr, 12 hr,

daily, 2nd day, 3rd day, 4th day, 7th day).

• Ten watering duration options (on, OFF, 2 min, 5 min,

10 min, 15 min, 30 min, 60 min, 90 min, 120 min).

• Manual watering without interrupting the watering interval.

• Weather resistant design.

• Dependable valve design.

• Low power consumtion soleniod.

• Watering interval reminder.

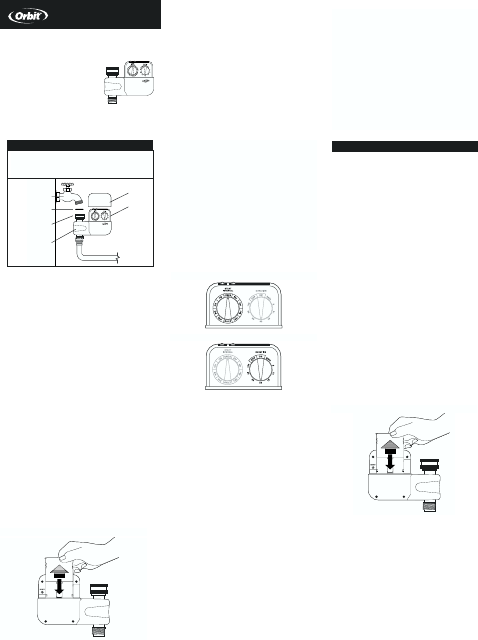

Battery installation

(see figure 1).

1. Remove the timer cover.

2. Pull the battery compartment out of the timer.

3. Install three AA alkaline batteries. Refer to the battery

compartment for the correct orientation of the batteries,

(see figure 1).

4. Place the battery compartment back in the timer.

• Three fresh AA alkaline batteries should last for an entire

watering season. When the battery voltage is below a safe

operating voltage the valve will not open. The batteries

should be replaced when this occurs.

Figure 1

Set the watering interval (Dial A)

Turn the Interval Dial (A) to the desired watering interval.

(see figure 2).

The Interval dial (A) has ten possible settings:

• Once – the valve will open once for the amount of time on the

Duration dial and then remain inactive until the Interval dial is

rotated to another setting.

•2 hr – the water will come on every two hours.

•4 hr – the water will come on every four hours.

•8 hr – the water will come on every eight hours.

• 12 hr – the water will come on every twelve hours.

• Daily – the water will come on once every day.

• 2nd day – the water will come on every other day.

• 3rd day – the water will come on every third day.

• 4th day – the water will come on every fourth day.

• 7th day – the water will come on once a week.

Note:

The time of day when the interval is programmed becomes the

reference time and should be recorded using the interval

reminder slider.

The watering interval will begin after the dial has been station-

ary for 1 second. Whenever the Interval dial is rotated, the

interval resets to the new setting.

The water will not come on until after the first complete inter-

val. For example if the timer is programmed at noon, and the

Interval dial is set to come on every four hours. At four

o’clock the valve will open. If immediate watering is desired

then a manual watering interval may be started.

Figure 2

Figure 3

Set the watering duration (Dial B)

Rotate the Duration Dial (B) to the desired watering duration.

(see figure 3).

The Duration dial (B) has ten possible settings:

• OFF – the valve will close and remain closed when the dial is

in this setting.

• ON – the valve will open and remain open when the dial is in

this setting.

•2 min, 5 min, 10 min, 15 min, 30 min, 60 min, 90 min, 120 min -

the water will come on automatically at the intervals shown

by the Interval dial and remain on for the chosen duration

before automatically switching off.

To change the watering duration while the valve is open simply

rotate the dial to the new duration. The valve will remain open

for the duration shown on the Duration dial regardless of how

long the valve had been open prior to the change.

Watering once

Turn the Interval dial (A) to the once setting and turn the

Duration dial (B) to the desired setting. The valve will open for

the duration shown on the Duration dial (B) and then close.

The timer will remain inactive until the Interval dial (A) is rotat-

ed to a new setting, or until the valve is activated manually.

Manual watering

Turn the Duration dial (B) to the on setting. The valve will open

and remain open until the dial is rotated to another setting. The

dial can be rotated to a duration setting, and the valve will

remain open for that amount of time. The watering interval is

not interrupted when the valve is operated manually.

To turn the valve off

Rotate the duration Dial (B) to the off setting. The valve will not

open while the dial is in this setting. The watering interval will

continue uninterrupted while the Duration dial is in the off set-

ting.

Interval reminder

The timer has a interval reminder built in to help remind you

when the water should come on next. It has no programining

function and is only an aid for remembering when the watering

interval was programmed. To use the reminder simply slide it to

the hour setting that represents the time of day the watering

interval was set.

Low battery indication

When the battery voltage level drops below the ideal operating

voltage the valve will close. The batteries should be replaced

with three fresh alkaline batteries as soon as possible.

Maintenance and off-season storage

• Remove the timer from the faucet during the winter or during

extended periods of inactivity.

• Open and close the valve several times to allow the water to

drain out.

• Remove the batteries and clean the battery contacts. Discard

the batteries if signs of corrosion are present.

• Store the timer in a warm dry location.

Trouble shooting checklist

❑ Batteries are installed properly.

❑ New alkaline batteries are installed.

❑ The hose faucet is turned on.

❑ Try operating the timer manually by rotating the Duration dial

(B) to the on setting.

Características

• Dos diales o selectores giratorios para fijar el intervalo y la

duración del riego.

• Funcionamiento por batería (tres AA alcalinas), no se

incluyen.

• Diez opciones para riego a intervalos (una vez, 2 hrs, 4 hrs, 8

hrs, 12 hrs, a diario, 2ndo día, 3er día, 4to día, 7mo día).

• Diez opciones para duración de riego (ENCENDIDO, APAGA-

DO, 2 min., 5 min., 10 min., 15 min., 30 min., 60 min., 90 min.,

120 min.).

• Riego manual sin interrumpir el intervalo de riego.

• Diseño resistente a la interperie.

• Diseño de válvulas de funcionamiento seguro.

• Solenoide de bajo consumo de energía.

• Recordatorio de intervalo de riego.

Instalación de batería

(Vea la ilustración 1)

1.Quite la tapa del regulador.

2.Saque del regulador el compartimiento de la batería.

3.Instale tres baterias alcalinas de AA. Refiérase al compar-

timiento de la batería para saber cuál es la posición correcta

de las baterías (vea la ilustración 1).

4.Vuelva a colocar el compartimiento de la batería en el

regulador.

•Tres baterias alcalinas de AA nuevas deben durar toda la

temporada de riego. Cuando el voltaje de la batería no esté a

un nivel de funcionamiento apropiado, la válvula no se abrirá

y el regulador emitirá una señal acústica. Se deben cambiar

las baterías cuando una o las dos condiciones existan.

Illustración 1

Para fijar el intervalo de riego (Selector giratorio A)

Pase el selector giratorio de intervalo (A) al intervalo de riego

deseado. (Vea la ilustración 2)

El dial o selector giratorio de intervalo (A) tiene diez posiciones

posibles:

• Una vez – la válvula se abrirá una vez por el período de tiem-

po estipulado en el dial de duración y permanecerá inactivo

hasta que el dial o selector giratorio se cambie a otra posi-

ción.

•2 hrs. – el riego se iniciará cada dos horas.

•4 hrs. – el riego se iniciará cada cuatro horas.

•8 hrs. – el riego se iniciará cada ocho horas.

• 12 hrs. – el riego se iniciará cada doce horas.

• Diariamente – el riego se iniciará una vez al día.

•2 do día – el riego se iniciará día por medio.

• 3er día – el riego se iniciará cada tercer día.

• 4to día – el riego se iniciará cada cuarto día.

•7mo día – el riego se iniciará cada séptimo día.

ENGLISH

ESPAÑOL

START

INTERVAL

DURATION

9

0

6

0

3

0

1

5

1

0

1

2

0

O

F

F

O

N

2

m

i

n

5

3

r

d

2

n

d

D

A

I

L

Y

1

2

h

r

8

h

r

4

t

h

7

t

h

O

N

C

E

2

h

r

4

h

r

Environmental Conditions

Working Temperature: 0 to 50°C (30 to 122°F)

Storage Temperature: -20 to 55°C (-4 to 131°F)

HOSE FAUCET

HOSE WASHER

BRASS OR

PLASTIC SWIVEL

CONNECTOR

AUTOMATIC HOSE

FAUCET VALVE

COVER

TIMER

Installation and User’s Guide

Hose Faucet Timer 2 Dial Model 94066

Guía para la instalación y el usuario

Regulador (Timer) de llave de manguera de 2

diales o selectores giratorios, Model 94066

Mode d’emploi et d’installation

Minuterie à 2 cadrans de modèle 94066

pour robinet extérieur

Installazione e guida dell’utente

Timer rubinetto tubo a 2 selettori modello 94066

Montage- und Benutzerhandbuch

Timer für Schlauch-Wasserhahn, Modell 94066 mit 2 Wählscheiben

Low Battery Reset Feature

When low batteries are detected the timer will cease to oper-

ate. If this happens, replace the 3 AA batteries with fresh ones,

then press the RESET button on the back of the housing. The

timer will continue to function as before. Note: If the timer

ceases to function with fresh batteries, press the RESET button

to operate the timer.

Función de Restauración con la Batería Baja

Cuando se detecte que las baterías están bajas el tempo-

rizador dejará de funcionar. Si esto ocurriera, sustituya las 3

baterías AA con baterías nuevas y luego pulse el botón RESET

que se encuentra en la parte posterior del alojamiento de

éstas. El temporizador continuará funcionando igual que antes.

Nota: Si el temporizador deja de funcionar con las baterías

nuevas, pulse el botón RESET para hacerlo funcionar.

Puntuación
