Manual de uso

S-20~125FM3HPQ

Urban Multi air conditioner

4PW15114-1A

Installation and operation manual

1

C

ONTENTS

P

age

Before installation..............................................................................1

Selecting installation site ...................................................................2

Preparations before installation .........................................................2

Indoor unit installation........................................................................3

Refrigerant piping work......................................................................3

Drain piping work...............................................................................4

Electric wiring work............................................................................5

Wiring example and how to set the remote controller........................6

Wiring example..................................................................................6

Installation of the decoration panel....................................................7

Test operation....................................................................................7

Maintenance......................................................................................8

Wiring diagram ................................................................................10

B

EFORE

INSTALLATION

■

Leave the unit inside its packaging until you reach the

installation site. Where unpacking is unavoidable, use a sling of

soft material or protective plates together with a rope when

lifting, this to avoid damage or scratches to the unit.

■

Refer to the installation manual of the outdoor unit for items not

described in this manual.

■

Caution concerning refrigerant series R-410A:

The connectable outdoor units must be designed exclusively for

R-410A.

■

Do not place objects in direct proximity of the outdoor unit and

do not let leaves and other debris accumulate around the unit.

Leaves are a hotbed for small animals which can enter the unit.

Once in the unit, such animals can cause malfunctions, smoke

or fire when making contact with electrical parts.

Precautions

■

Do not install or operate the unit in rooms mentioned below.

- Places with mineral oil, or filled with oil vapour or spray like in

kitchens. (Plastic parts may deteriorate.)

- Where corrosive gas like sulphurous gas exists. (Copper

tubing and brazed spots may corrode.)

- Where volatile flammable gas like thinner or gasoline is used.

- Where machines generating electromagnetic waves exist.

(Control system may malfunction.)

- Where the air contains high levels of salt such as air near the

ocean and where voltage fluctuates a lot (e.g. in factories).

Also in vehicles or vessels.

■

When selecting the installation site, use the supplied paper

pattern for installation.

■

Do not install accessories on the casing directly. Drilling holes in

the casing may damage electrical wires and consequently cause

fire.

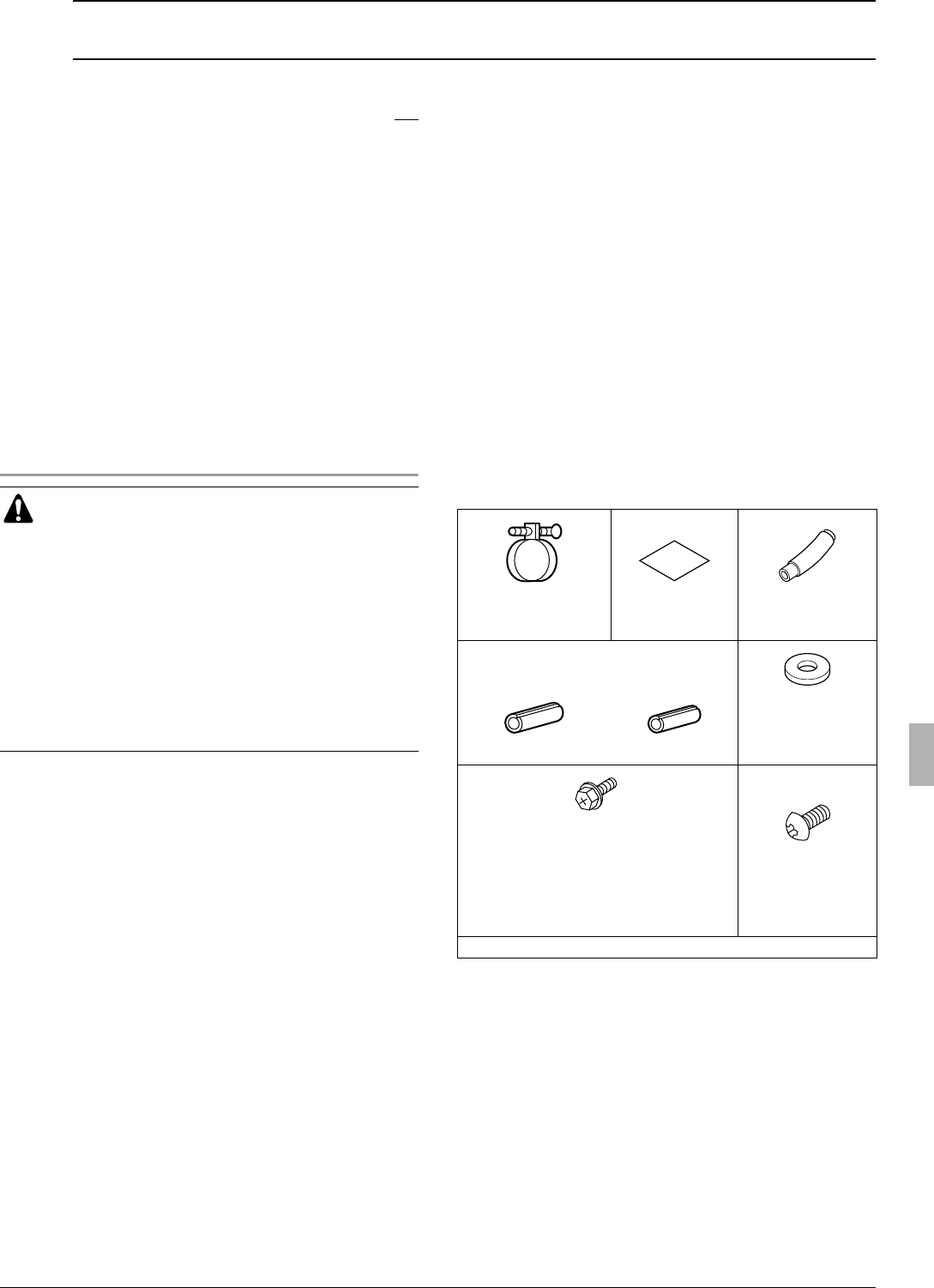

Accessories

Check if the following accessories are included with your unit.

Screws for fixing panels are attached to the air inlet panel.

Optional accessories

■

There are two types of remote controllers: wired and wireless.

Select a remote controller according to customer request and

install in an appropriate place.

Refer to catalogues and technical literature for selecting a

suitable remote controller.

■

When installing bottom suction: air inlet panel and canvas

connection for the air inlet panel.

S-20FM3HPQ S-40FM3HPQ S-80FM3HPQ

S-25FM3HPQ S-50FM3HPQ S-100FM3HPQ

S-32FM3HPQ S-63FM3HPQ S-125FM3HPQ

Urban Multi air conditioner

Installation and

operation manual

READ THESE INSTRUCTIONS CAREFULLY BEFORE

INSTALLATION. KEEP THIS MANUAL IN A HANDY

PLACE FOR FUTURE REFERENCE.

IMPROPER INSTALLATION OR ATTACHMENT OF

EQUIPMENT OR ACCESSORIES COULD RESULT IN

ELECTRIC SHOCK, SHORT-CIRCUIT, LEAKS, FIRE OR

OTHER DAMAGE TO THE EQUIPMENT. BE SURE ONLY

TO USE ACCESSORIES MADE BY PANASONIC WHICH

ARE SPECIFICALLY DESIGNED FOR USE WITH THE

EQUIPMENT AND HAVE THEM INSTALLED BY A

PROFESSIONAL.

IF UNSURE OF INSTALLATION PROCEDURES OR USE,

ALWAYS CONTACT YOUR PANASONIC DEALER FOR

ADVICE AND INFORMATION.

Metal clamp

1 piece

Paper pattern for

installation

1 piece

Drain hose

1 piece

Insulation for fitting

1 each

Washer for

hanging bracket

8 pieces

for gas pipe for liquid pipe

Screws for duct flanges

1 set

S-20•25•32FM3HPQ 6 pieces

Screws for fixing

the paper pattern

for installation

6 pieces

S-40•50FM3HPQ 8 pieces

S-63FM3HPQ 12 pieces

S-80•100•125FM3HPQ 16 pieces

Other: installation and operation manual, fuse
