Manual de uso

2

Thank you for purchasing Panasonic product.

Before operating the system, read these operating

instructions thoroughly and keep them for future reference.

Table of contents

Safety precautions ………………………………………… 3-5

To adjust initial settings …………………………………… 6-7

How to use ……………………………………………… 8-11

Cleaning instructions ……………………………………… 12

Troubleshooting …………………………………………13-14

Information ………………………………………………… 15

The illustrations in this manual are for explanation purposes

only and may differ from the actual unit.

They are subject to change without notice for future

improvement.

Before use, make sure the system

has been installed correctly by an

authorised dealer according to the

given instructions.

• Panasonic Air-to-Water is a split system, consisting

of two units: indoor and outdoor units. The indoor unit

consist of the hydromodule and 200L sanitary water

tank.

• These operating instructions describe how to operate

the system using the indoor and outdoor units.

• As for the operation of other products such as radiator,

external thermo controller, and underfloor units, refer to

the operating instructions of each product.

• System could be locked to operate in HEAT mode and

disable COOL mode.

• Some functions described in this manual may not be

applicable to your system.

• Consult your nearest authorised dealer for further

information.

*

1

The system is locked to operate without COOL mode.

It can be unlocked only by authorised installers or our

authorised service partners.

*

2

Only displayed when COOL mode is unlocked

(Means when COOL mode is available).

Operating conditions

HEATING

(TANK)

HEATING

(CIRCUIT)

COOLING

(CIRCUIT)

Water outlet temperature (°C)

(Min. / Max.)

- / 65* 25 / 55 5 / 20

Outdoor ambient temperature (°C)

(Min. / Max.)

-20 / 35 16 / 43

* Above 55 °C, only possible with backup heater operation.

When the outdoor temperature is out

of the range in the table, the heating

capacity will drop significantly and the

outdoor unit may stop operating for its

protection.

The unit will restart automatically after

the outdoor temperature returns to the

specified range.

Fan Coil Unit

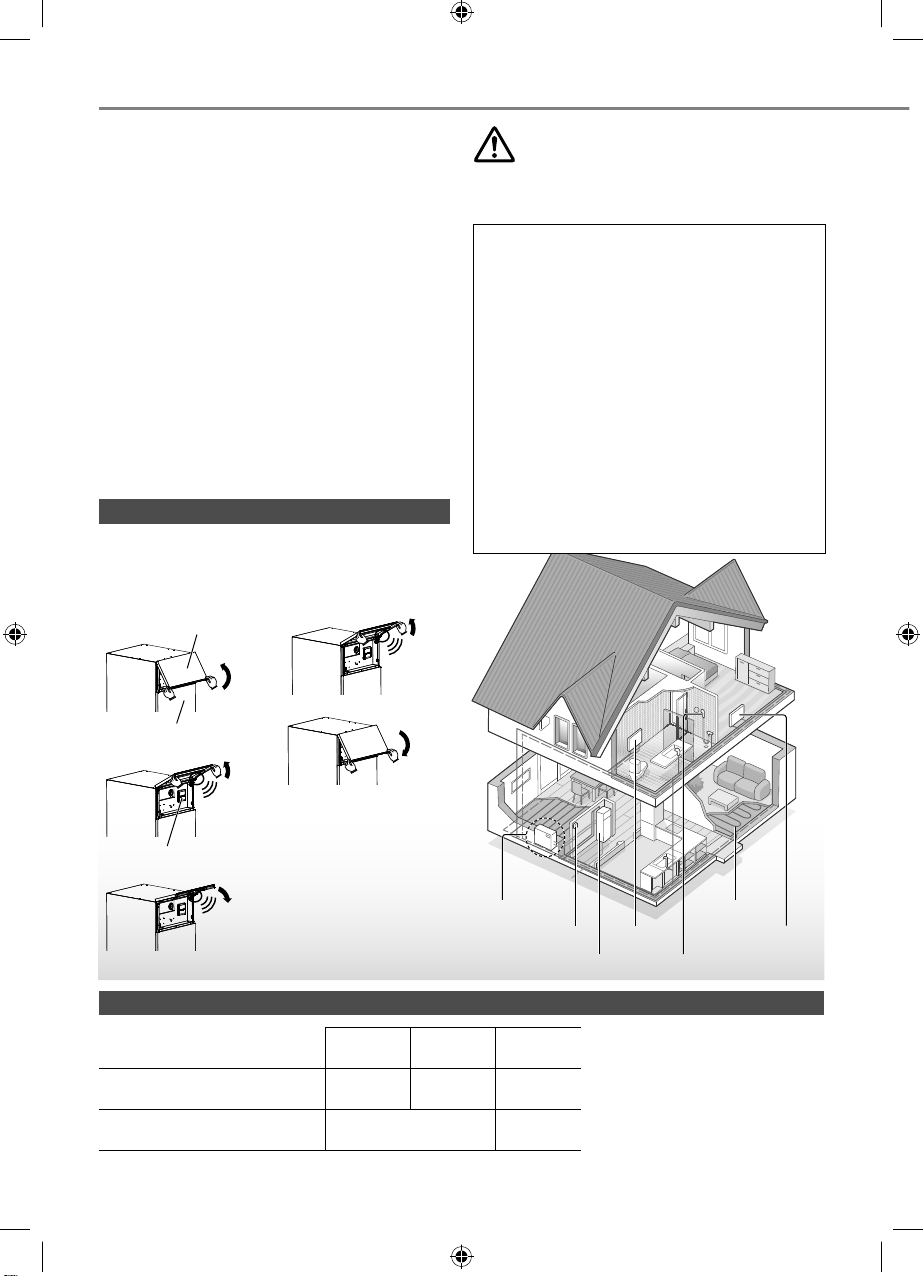

System overview

Open and Close Top Front Plate

Do not open or close the Top Front Plate by excessive

force.

To Open: To Close:

open

Top Front Plate

Bottom Front Plate

“click”

Hold in position

Control panel

“click”

“click”

close

Note:

Not recommended to open

the Bottom Front Plate.

(For authorised dealer/

specialist use only)

Indoor Unit

Power Supply Radiator

Shower

Floor HeatingOutdoor Unit

F569865-SS1114-0.indb 2F569865-SS1114-0.indb 2 08/01/2015 12:44:35 PM08/01/2015 12:44:35 PM

Process BlackProcess Black
