Manual de uso REV 82180103 Timbre

Manual de uso

General information

Please thoroughly read the following operating instructions before placing the device

into service and keep for future reference. The bell button is suitable for operation in

protected outdoor areas and not in harsh environments. The wireless chime is intended for

installation in dry indoor areas (IP20).

Installation may only be carried out by a qualified electrician!

Notes

• The wireless chime is only designed for use with the appropriate batteries.

• This wireless chime set consists of a transmitter and a receiver.

• This wireless chime set offers you the possibility to set up a bell system without wiring.

• This set is not intended for integration into an existing bell system.

• The range between transmitter and receiver is maximum 50m in the open field. The radio signal

is transmitted through walls, walls, furniture and other obstacles, but depends on the structural

conditions - walls, especially reinforced concrete walls, heat-insulating glazing and ceilings lead to a

reduction in range.

• Shielding caused by metal parts can severely impair reception, so that the signal cannot be transmitted.

For this reason, never attach the transmitter to metal surfaces.

• If the product is not in use for a long period of time, remove the batteries.

• The product has no replaceable parts. Do not try to open or repair the product.

Technical Data

Type: F-708B

Range (free field): max. 50m

Frequency: 433,92MHz

Frequency band: 433,05 – 434,79MHz

Max. transmission power: <10mW

Gong: 230V~, 50Hz

Transmitter: Battery: 1x 3V CR2032 (included in delivery)

Motion detector: Detection angle: 120 °

Range: 3m

Night light: Luminous duration approx. 35 seconds (fixed)

Protection: Receiver: IP20 (for dry indoor use only)

Transmitter: IP44 (protected outdoor area)

Volume: max. 80dB (4-stage adjustable)

Number of melodies: 58 melodies for selection

Standby consumption: Gong: <5mA

Mode: 4 modes selectable:

• Sound + flashlight

• Only sound

• Only flashlight

• Sound + steady light

Protection class: Gong: protection class II

Transmitter: protection class III (Safety Extra Low Voltage )

GB

Safety Instructions for batteries:

• Incorrect polarity of the batteries can destroy the unit.

• Do not store batteries within reach of children, especially those that can be swallowed.

• Do not attempt to reactivate batteries by heating or similar measures.

• Primary batteries must not be charged as this can lead to electrolyte leakage, explosion or fire.

• Do not immerse batteries in water and store them in a dry and cool place, not in a damp place.

• Do not throw batteries into the fire, do not open them or solder or weld them yourself.

• Do not short-circuit batteries.

Coding

The gong and bell button in this set have been encoded in the factory. If you would like to reset the

coding or add more gongs/bell buttons, proceed as follows:

Coding the gong and bell button:

Press the ‘code’ button. If the gong beeps, press the bell button within 30 seconds. If the gong

sounds, coding is successful. If the gong does not sound, press the bell button again until coding is

successful. To code several bell buttons, repeat the process outlined above.

Deleting coding:

Press and hold the ‘code’ button for around 10 seconds until the gong sounds. All coding is comple-

tely deleted.

Note: The coding between the gong and the bell button remains until you delete the coding as

described above. This is the case even if you remove the batteries.

Up to 6 gongs can be connected to one bell button.

Up to 6 bell buttons can be connected to one gong.

Note: If you connect several (max. 6) bell buttons to a gong, it is not possible to determine which bell

button is being pressed, as the chosen melody is saved on the gong and not on the bell button.

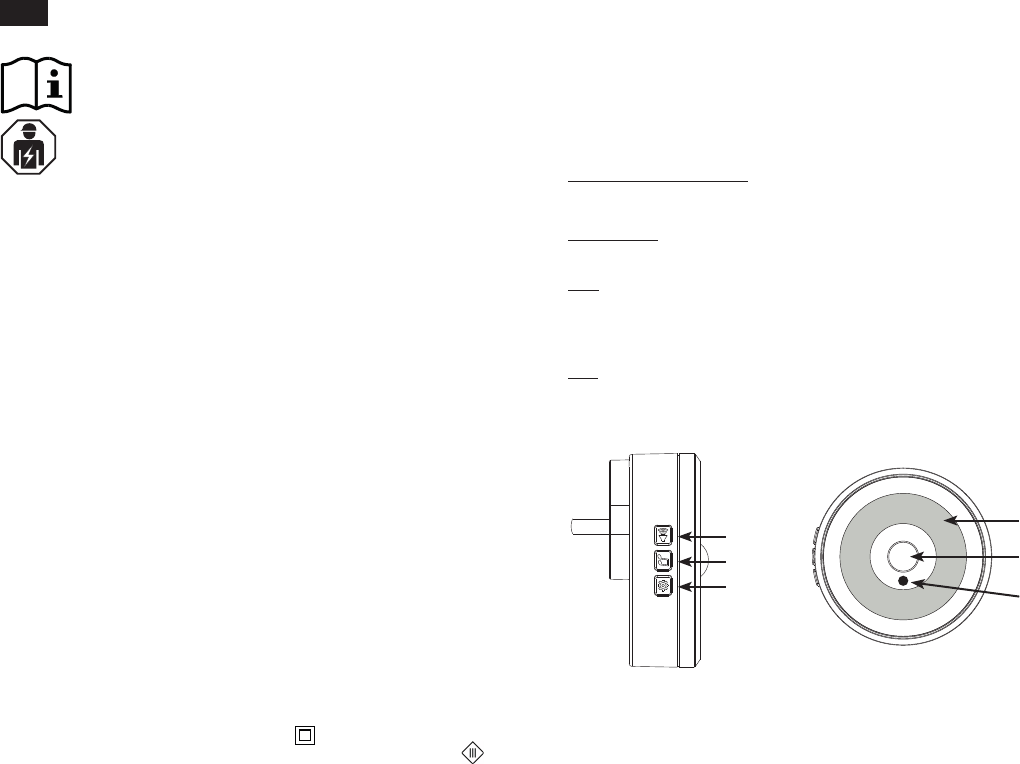

Volume

Melodies

Code

Set up

Remove the insulation strip in the battery compartment of the bell button and put the Gong in a

230V~-Wall socket (for the battery type see ‘Technical Data’).

Volume setting / melody selection

Press the ‘volume’ / ‘melody’ button until you hear the correct volume/melody. Your selection is

automatically saved.

Night light function

The night light function is active in every mode. When the motion sensor detects movement in the

dark (<0.1Lux), the night light will switch on for approx. 35 seconds.

Night light /

flash

motion

detector

Light Intensity -

sensor

ANL_F-708B.indd 7 18.02.2019 14:30:39
