4 English
Installation Requirements
Electrical Requirements
IMPORTANT
Observe all governing codes and ordinances.
It is the customer’s responsibility:
■ To contact a qualied electrical installer.
■ To assure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA 70
— latest edition*, or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all
local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended
that a qualied electrician determine that the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Other Requirements
■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
■ If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools designed
and UL listed for joining copper to aluminum.
■ Follow the electrical connector manufacturer’s recommended
procedure. Aluminum/copper connections must conform with local
codes and industry accepted wiring practices.
■ Wire sizes and connections must conform with the rating of the
appliance as specied on the model/serial rating plate. The model
serial plate is located behind the lter on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National
Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards
C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No.
0-M91 (latest edition) and all local codes and ordinances.
■ A U.L.- or C.S.A.-listed conduit connector must be provided at each
end of the power supply conduit (at the range hood and at the
junction box).
If an electrical connection is accessible, connect the hood to an outlet that
complies with current codes and regulations and ensure that the outlet is
in a position where the hood can be installed. If an electrical connection
is not accessible in the install location (direct connection to the electrical
network) or the outlet will not be in a position for installation, place an
approved bipolar switch in an accessible position that provides full
disconnection under Overvoltage Category III conditions, in accordance
with local wiring rules. When the product is connected by a plug to the
outlet, the plug must remain visible after instalaltion of the product.
Before installing the Hood
• The Vent system must terminate outdoors.
• For the most ecient air ow exhaust, use a straight run or as few
elbows as possible. CAUTION: Vent unit to outside of building, only.
• At least two people are necessary for installation.
• Fittings material are provided to secure the hood to most types of
walls and ceilings. Consult a qualied installer to conrm that
the ttings are suitable for your cabinets, walls, and ceiling.
• Do not use exible ducting.
• COLD WEATHER installations should have an additional backdraft
damper installed to minimize backward cold air ow and a
nonmetallic thermal break to minimize conduction of outside
temperatures as part of the ductwork. The damper should be on the
cold air side of the thermal break. The break should be as close as
possible to where the ducting enters the heated portion of the house.
Venting Methods
Closely follow the instructions set out in this manual. Samsung is not
responsible for any eventual inconveniences, damages or res caused by
not complying with the instructions in this manual.
Ducting version
The hood is equipped with a 6” (15.2 cm) round transition for discharge of
fumes to the outside.

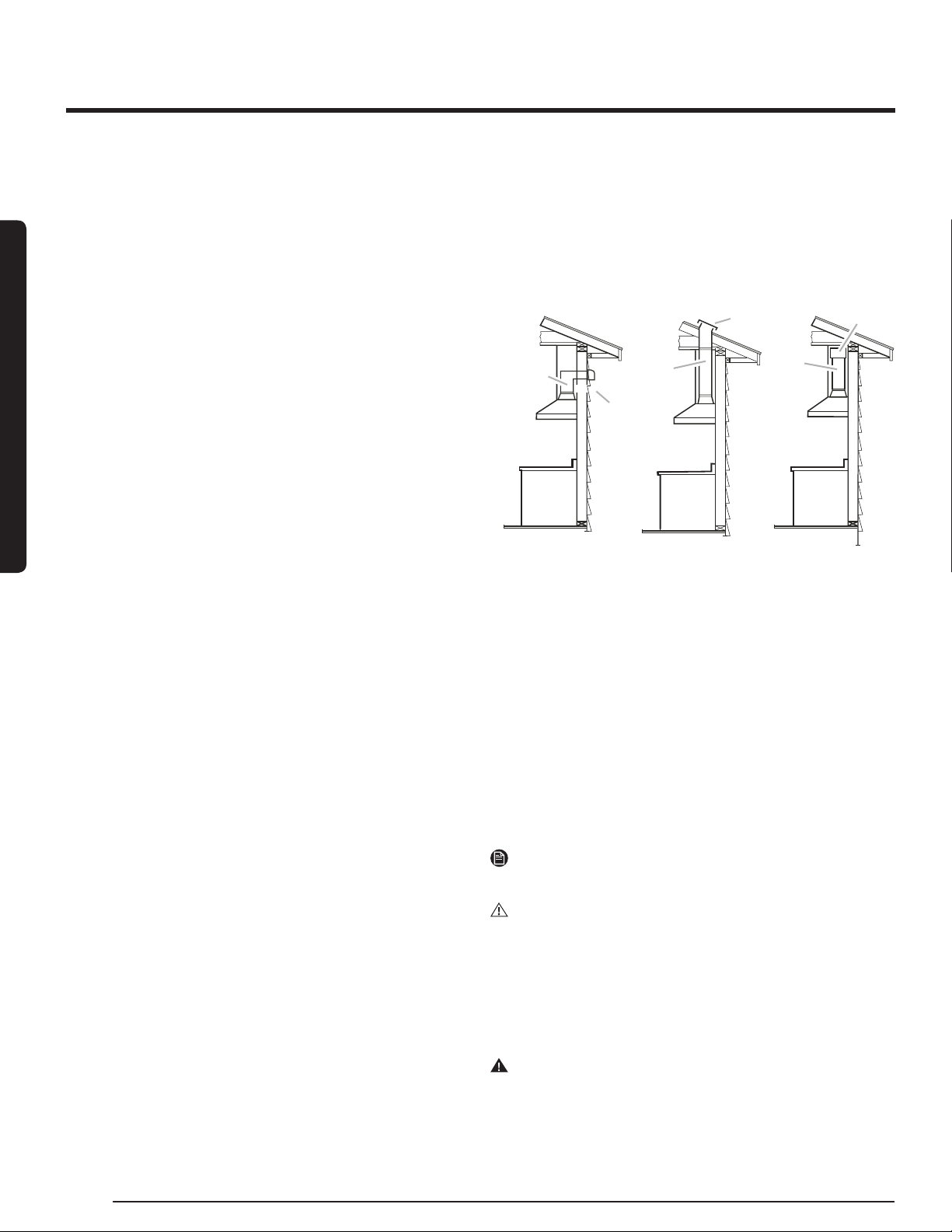

Horizontal Discharge Vertical Discharge Horizontal Discharge
A
B
A
B
A
B
A. Wall cap
B. 6” (15.2 cm) round vent
A. Roof cap
B. 6” (15.2 cm) round vent
A. Deector
B. 6” (15.2 cm) round vent
Preparation
Do not cut a joist or stud unless absolutely necessary. If a joist or stud
must be cut, then a supporting frame must be constructed.
Fittings material are provided to secure the hood to most types of walls/
ceilings.
However, a qualied technician must verify that the ttings are suitable
for your cabinets, walls, and ceiling.
Before making cutouts, make sure there is proper clearance within the
ceiling or wall for the exhaust vent.
Ductless version (Recirculating)
For installations where cooking fumes and vapor cannot be discharged
to the outside, attach a charcoal lter and the deector on the duct cover
support bracket. Fumes and vapors will be recycled through the top grille
by a duct connected to the transition and the transition mounted on the
deector.
NOTE
For horizontal discharge only: purchase the Ductless Recirculating Kit.
Minimum Duct Size: 6” Round Pipe.
CAUTION
■ For electric/induction cooktop & range installations: Mount the hood
so the bottom is at least 24” (61cm) above the cooking surface.
■ For gas cooktop & range installations: Mount the hood so the bottom
is at least 27” (68.6 cm) above the cooking surface.
■ For both, mount no higher than 36” (91.4 cm) above the cooking
surface.
■ Measure the mounting height from the surface of the range to the
bottom of the hood.
WARNING
This hood is intended for household use.
PLEASE READ THE INSTALLATION MANUAL FOR THE HOOD´S
SPECIFIC APPLICATION. Check your ceiling height and the hood´s
height before selecting your hood.
Installation Requirements
