WARNING – RISK OF ELECTRIC SHOCK
1) Use only in ponds and small decorative fountains where persons will
immerse no more than their hands and lower arms while the product is
energized.
2) DO NOT use in water intended for swimming, wading, immersion, or
bathing.
3) All installer completed cable connections must be located outside of
pond or fountain.
4) Low voltage circuit must be supplied by a power unit marked as suitable
for supplying submersible luminaires.
5) Power unit must be supplied by a branch circuit protected by a Class A
type ground fault circuit interrupter (GFCI).
6) Maximum Depth: 72” (1.8m).
7) Wiring connections must be made with approved/listed wire connection
device(s) suitable for the application. Do not exceed manufacturers’
wiringcombinationspecicationsforsizeandquantityofconductors.
8) Thisxtureistobeusedonlywithalistedpowerunit(transformer)rateda
maximum of 300 W (25 AMPS) 15 volts.
9) The unit low voltage cable integral to the product is intended for
shallow burial - maximum 6 inches (152 mm).
10) Low voltage cable shall be protected by routing in close proximity to the
luminaire, or next to a building structure such as a house or deck and not
be buried except for a maxiumum of 6 inches (15.2 cm).
11) Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath
the surface of the ground.
12) NOTE: If additional Direct Burial wire is needed, contact your local
Kichler
®
landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.
• 10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.
• 12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’
(76 M), 15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M),
15506-BK.
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main fusebox
before installation.
This xture is intended for installation in accordance with the National
Electric Code (NEC) and Local code specications. Failure to adhere to
these codes and instructions may result in serious injury and/or property
damage and will void the warranty. If you are not familiar with code
requirements, installation by a certied electrician is recommended.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE
OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF
POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES,
PINE NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT
HAS ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE
FIXTURE.
For warranty information please visit: kichler.com/customer-care/warranty-information/landscape-warranty
Installation for Use as Underwater Fixture:
1) Turnopower.
2) Make wire connections directly to a low voltage transformer or connect to
low voltage power supply cable using approved/listed wire connection
device(s) suitable for the application.
NOTE:Connectionfromthexturecabletopowersupplycablemust
not be submerged.
3) Fixture can be placed in water by itself to be hidden or tucked away into
rocks.Toadjustthetiltangleofxture,loosenthethumbscrews,
adjustthexturetothedesiredangle,andre-securebytighteningthe
thumbscrews. Fixture can be used without cowl and/or bracket. To
remove the cowl and/or bracket, loosen and remove the thumbscrews,
slidethebracketofromtheside,andslidethecowlandrubberwashers
ofromthetop.Whenusingxturewithoutbracket,tuckxtureinto
rocksandbackllrocksaroundthexturetosecureindesiredlocation.
4) Placextureindesiredlocation.
NOTE: Always keep minimum 3” clearance from face/lens of product.
5) To weight down bracket for in-water use, stones or pebbles can be used
atbaseofbracket.Bracketcanalsobefastenedtoalargeratstone
using optional size 3/16” stainless steel masonry screws (not supplied).
6) Whenusingxtureinbodiesofwaterthatfreeze,pullxtureoutofwater
beforewaterfreezes.Donotplacexturebackintowateruntil
after water thaws.
Installation for Out of Water Use:
1) Turnopower.
2) The base of the bracket may be used as a template for marking the
desired mounting screw locations. At the desired location, drive one of
the mounting screws (provided) part way into the mounting surface. Slip
the base of the bracket over the screw by passing the mounting screw
head through center opening. Tighten the mounting screw to hold the
bracket in position. Drive the second mounting screw completely to fully
secure the bracket.
NOTE: Always keep minimum 3” clearance from face/lens of product.
3) Ifyouwishtoconcealthewiretothexture,drillawireopeninginthe
mounting surface through the center of the opening in the base of the
bracket.
4) Toadjustthetiltangleofxture,loosenthethumbscrews,adjustthe
xturetothedesiredangle,andre-securebytighteningthe
thumbscrews. Fixture can be used without cowl and/or bracket. To
remove the cowl and/or bracket, loosen and remove the thumbscrews,
slidethebracketofromtheside,andslidethecowlandrubberwashers
ofromthetop.Whenusingxturewithoutbracket,tuckxtureinto
rocksandbackllrocksaroundthexturetosecureindesiredlocation.
5) Make wire connections directly to a low voltage transformer or connect to
low voltage power supply cable using approved/listed wire connection
device(s) suitable for the application.
NOTE:Connectionfromthexturecabletopowersupplycablemustnot
be submerged.
To change light output setting:
NOTE:Toadjustlumenoutputforthisxture,see“Tochangelight
output setting” instructions on Page 2.
IS-16027SS-US
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST

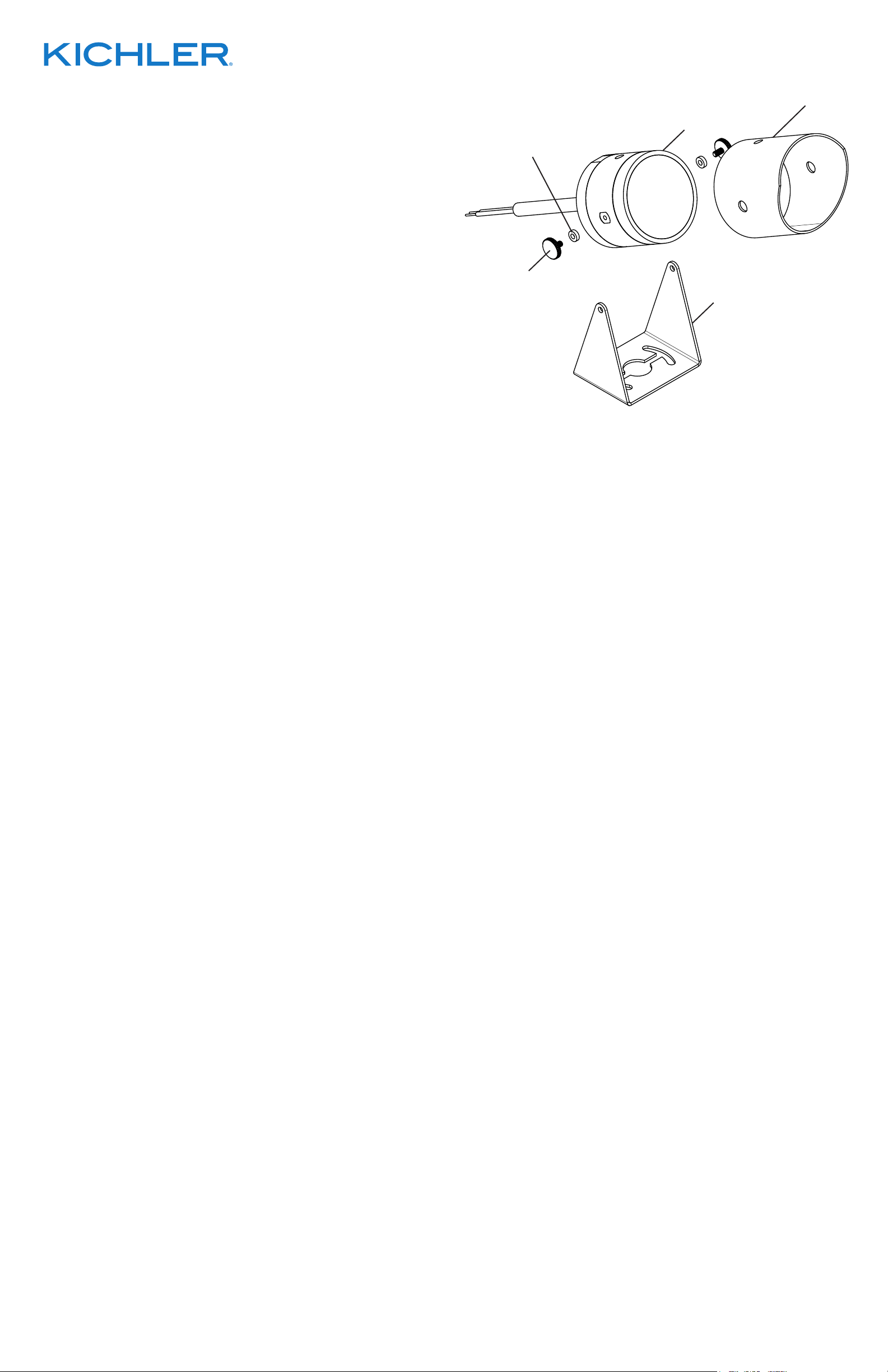

FIXTURE
COWL
THUMBSCREW
RUBBER WASHER
BRACKET
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired
operation.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning
theequipmentoandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing
measures:
• Reorient or relocate the receiving antenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiverisconnected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC INFORMATION
Page 1
CONFORMS TO ANSI/UL STD. 1838 CERTIFIED TO CSA STD. C22.2 NO. 250.7
