Manual de uso

S-20~125FM3HPQ

Urban Multi air conditioner

4PW15114-1A

Installation and operation manual

3

Bottom suction (See figure 7a)

Mounting the air inlet panel with a canvas connection (See

figure 7b)

Mounting the air inlet panel directly (See figure 7c)

This is to protect the air filter from damage during maintenance of the

filter.

For other installation than standard installation, contact your

Panasonic dealer for details.

2

The fan speed for this indoor unit is preset to provide standard

external static pressure.

If higher or lower external static pressure is required, reset the external

static pressure by repositioning the adaptors of the PC-board.

Refer to "Setting of static pressure changeover connector" on

page 6.

3

Install the suspension bolts.

(Use M10 size bolt for the suspension bolt.) Use anchors for

existing ceilings, and a sunken insert, sunken anchors or other

field supplied parts for new ceilings to reinforce the ceiling in

order to bear the weight of the unit.

Installation example

(See figure 4)

I

NDOOR

UNIT

INSTALLATION

When installing optional accessories (except for the air inlet panel),

read also the installation manual of the optional accessories.

Depending on the field conditions, it may be easier to install optional

accessories before the indoor unit is installed.

1

Install the indoor unit temporarily.

- Attach the hanger bracket to the suspension bolt. Be sure to

fix it securely by using a nut and washer from the upper and

lower sides of the hanger bracket. (See figure 5)

2

Check if the unit is horizontally levelled.

- Do not install the unit tilted. The indoor unit is equipped with a

built-in drain pump and float switch. (If the unit is tilted

against condensate flow, the float switch may malfunction

and cause water to drip.)

- Check if the unit is levelled at all four corners with a water

level or a water-filled vinyl tube as shown in figure 13.

3

Tighten the upper nut.

4

Fix the paper pattern for installation.

- The paper pattern for installation corresponds with the

measurements of the ceiling opening. Consult the builder for

details.

- Attach the paper pattern for installation to the unit with the

attached screws as shown in figure 17.

The paper pattern for installation is marked for 3 types of

ceiling openings. Read the notations carefully when

installing.

R

EFRIGERANT

PIPING

WORK

For refrigerant piping of outdoor unit, refer to the installation manual

supplied with the outdoor unit.

Before rigging tubes, check which type of refrigerant is used.

■

Use a pipe cutter and flare suitable for the used refrigerant.

■

Apply ether oil or ester oil around the flare portions before

connecting.

■

To prevent dust, moisture or other foreign matter from infiltrating

the tube, either pinch the end, or cover it with tape.

■

The outdoor unit is charged with refrigerant.

NOTE

The unit can be used with bottom suction by replacing

the interchangeable plate by the air filter holding plate.

1

Air filter holding plate with air filter(s)

2

Interchangeable plate

3

Small bottom plate

1

Ceiling surface

2

Ceiling opening

3

Air inlet panel (Optional accessory)

4

Indoor unit (Back side)

5

Canvas connection for air inlet panel (Optional accessory)

Model A

S-20•25•32FM3HPQ

610

S-40•50FM3HPQ

760

S-63FM3HPQ

1060

S-80•100•125FM3HPQ

1460

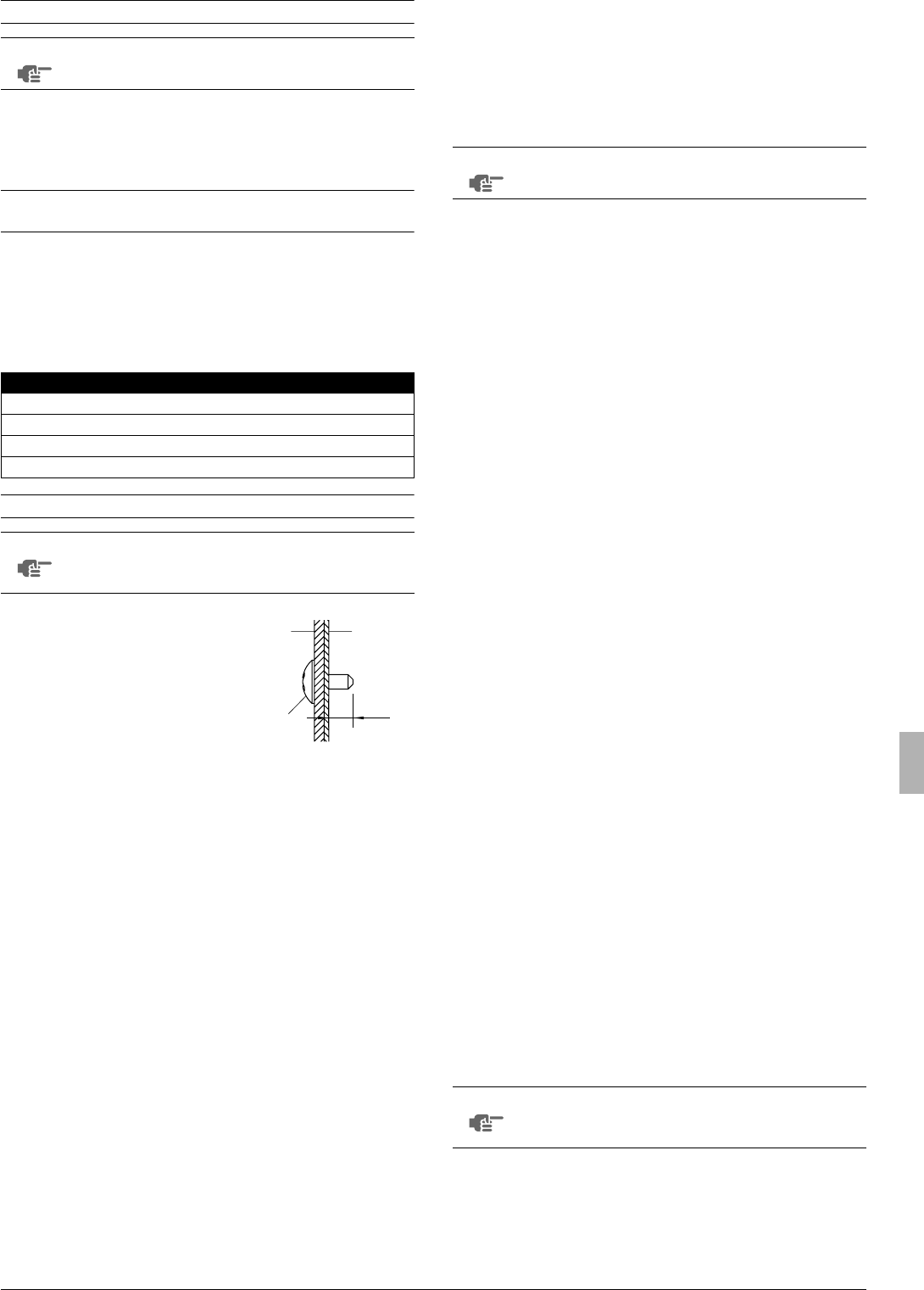

NOTE

When installing an air inlet duct, select fixing screws

that shall stick out maximum 5 mm at the inside of the

flange.

1

Air inlet duct

2

Inside of the flange

3

Fixing screw

12

3

≤5 mm

1

Anchor

2

Ceiling slab

3

Long nut or turn-buckle

4

Suspension bolt

5

Indoor unit

NOTE

All the above parts are field supplied.

1

Nut (field supply)

2

Washer for hanger bracket (supplied with the unit)

3

Tighten (double nut)

1

Water level

2

Vinyl tube

1

Paper pattern for installation (supplied with the unit)

2

Screws for fixing the paper pattern for installation (supplied with

the unit (6))

NOTE

All field piping must be provided by a licensed

refrigeration technician and must comply with the

relevant local and national codes.
