Installation and operation manual

4

S-20~125FM3HPQ

Urban Multi air conditioner

4PW15114-1A

■

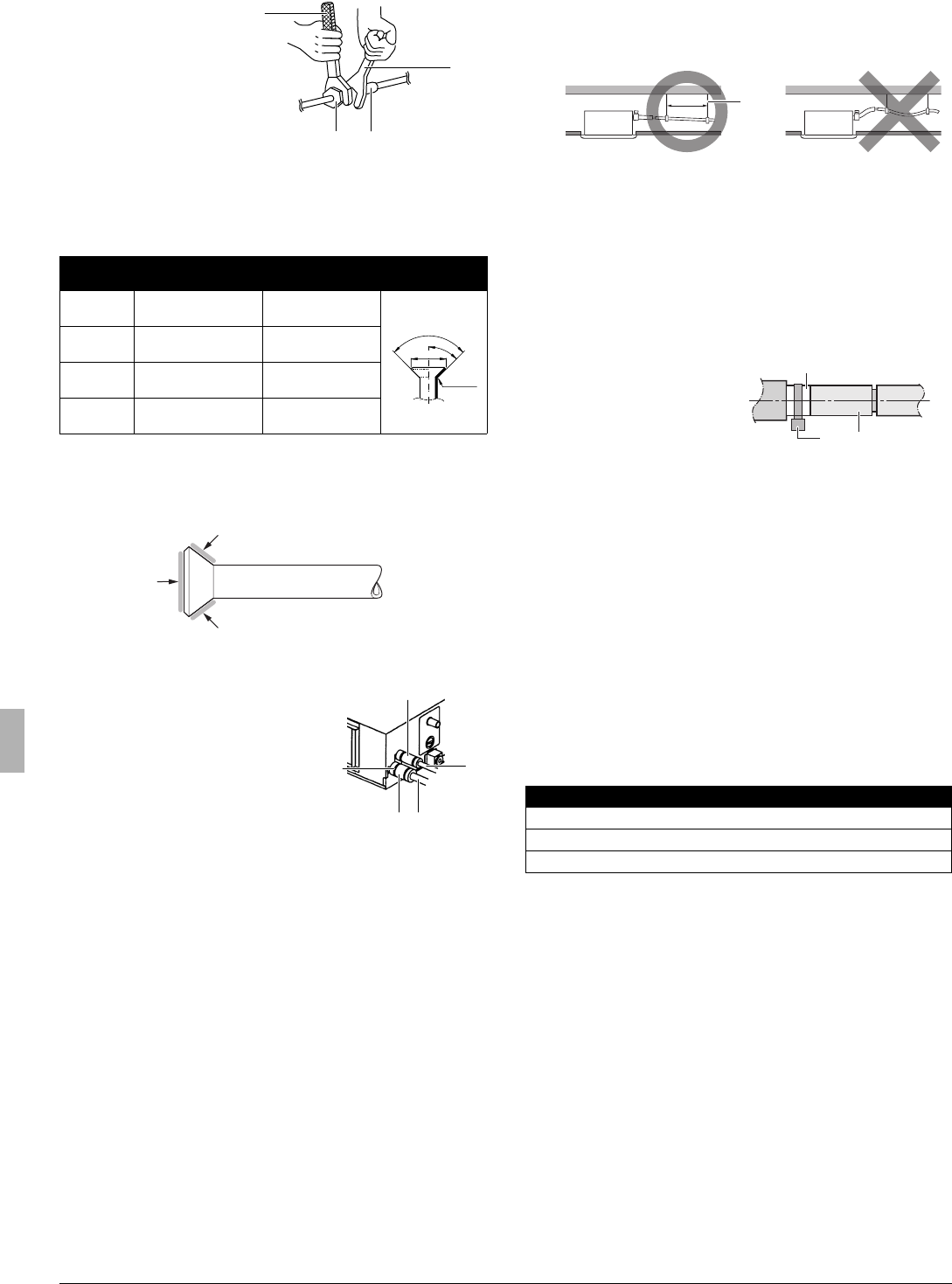

Be sure to use both a spanner and torque wrench together when

connecting or disconnecting pipes to/from the unit.

■

Refer to Table 1 for the dimensions of flare nut spaces and the

appropriate tightening torque. (Overtightening may damage the

flare and cause leaks.)

Table 1

■

When connecting the flare nut, coat the flare both inside and

outside with ether oil or ester oil and initially tighten by hand 3 or

4 turns before tightening firmly.

Coat here with ether oil or ester oil

■

Check the pipe connector for gas leaks, then insulate it.

D

RAIN

PIPING

WORK

Rig the drain piping as shown in the figure and take measures

against condensation. Improperly rigged piping could lead to leaks

and eventually wet furniture and belongings.

1

Install the drain pipes.

-Keep piping as short as possible and slope it downwards so

that air may not remain trapped inside the pipe.

-Keep pipe size equal to or greater than that of the connecting

pipe (vinyl pipe of 25 mm nominal diameter and 32 mm outer

diameter).

- Use the supplied drain hose and metal clamp. Tighten the

clamp firmly.

■

Insulate the drain hose inside the building.

■

If the drain hose cannot be sufficiently set on a slope, fit the

hose with drain raising piping (field supply).

HOW TO PERFORM PIPING (See figure 8)

■

Connect the drain hose to the drain raising pipes, and insulate

them.

■

Connect the drain hose to the drain pipe on the indoor unit, and

tighten it with the metal clamp.

-To ensure a downward slope of 1:100, install hanging bars

every 1 to 1.5 m.

- If unifying multiple drain pipes, install the pipes as shown in

figure 9.

2

After piping work is finished, check if drainage flows smoothly.

- Open the water inlet lid, add approximately 1 l of water

gradually and check the drainage flow. (See figure 10)

1

Torque wrench

2 Spanner

3 Piping union

4 Flare nut

Pipe

gauge

Tightening torque

Flare dimension

A (mm)

Flare shape

Ø6.4 14.2~17.2 N•m

(144~176 kgf•cm)

8.7~9.1

Ø9.5 32.7~39.9 N•m

(333~407 kgf•cm)

12.8~13.2

Ø12.7 49.5~60.3 N•m

(504~616 kgf•cm)

16.2~16.6

Ø15.9 61.8~75.4 N•m

(630~770 kgf•cm)

19.3~19.7

1 Liquid pipe

2 Gas pipe

3 Insulation for fitting of liquid line

(supplied with the unit)

4 Insulation for fitting of gas line

(supplied with the unit)

5 Clamps (use 2 clamps per

insulation)

2

3

1

4

R=0.4~0.8

45°

±2

90°

±2

A

5

3

1

24

1 Hanging bar

1 Metal clamp

2 Drain hose

3 White tape (field

supply)

1 Ceiling slab

2 Hanging bar

3 Adjustable range

4 Drain hose (supplied with the unit)

5 Metal clamp (supplied with the unit)

6 Drain raising pipe (field supply)

Installation A

Rear suction installation 275

When canvas duct is installed 350-530

When air inlet panel is directly installed 275

1 Multiple drain piping

1 Water inlet

2 Portable pump

3 Water inlet lid

4 Bucket (adding water from water inlet)

5 Drain outlet for maintenance (with rubber drain plug)

6 Refrigerant pipes

1-1.

5

m

1

21

3
