Manual de uso

S-20~125FM3HPQ

Urban Multi air conditioner

4PW15114-1A

Installation and operation manual

5

When electric wiring work is finished

Check drainage flow during COOL running, explained in "Test operation"

on page 7.

When electric wiring work is not finished

Remove the switch box cover and connect the single-phase power

supply and the remote controller to the terminals. (Refer to "Electric

wiring work" on page 5 for switch box attachment/detachment.)

(Refer to figure 11a and figure 11b)

Next, press the inspection/test operation button on the remote

controller. The unit will engage the test operation mode. Press the

operation mode selector button until selecting fan operation

. Then, press the on/off button . The indoor unit fan and drain

pump will start up. Check that the water has drained from the unit.

Press to go back to the first mode.

ELECTRIC WIRING WORK

General instructions

■ All field supplied parts and materials and electric works must

conform to local codes.

■ Use copper wire only.

■ Follow the "Wiring diagram" attached to the switch box cover to

wire the outdoor unit, indoor units and the remote controller. For

details on hooking up the remote controller, refer to the

"Installation manual of the remote controller".

■ All wiring must be performed by an authorized electrician.

■ A circuit breaker capable of shutting down power supply to the

entire system must be installed.

■ This system consists of multiple indoor units. Mark each indoor

unit as unit A, unit B..., and be sure the terminal board wiring to

the outdoor unit and HR box are properly matched. If wiring and

piping between the outdoor unit and an indoor unit are

mismatched, the system may cause a malfunction.

Electrical characteristics

MCA: Min. circuit Amps (A)

MFA: Max. Fuse Amps (A)

KW: Fan Motor Rated Output (kW)

FLA: Full Load Amps (A)

Specifications for field supplied fuses and wire

Allowable length of transmission wiring between indoor and outdoor

units, and between the indoor unit and the remote controller is as

follows:

1. Outdoor unit - indoor unit: max. 1000 m (total wiring length: 2000 m)

2. Indoor unit - remote controller: max 500 m

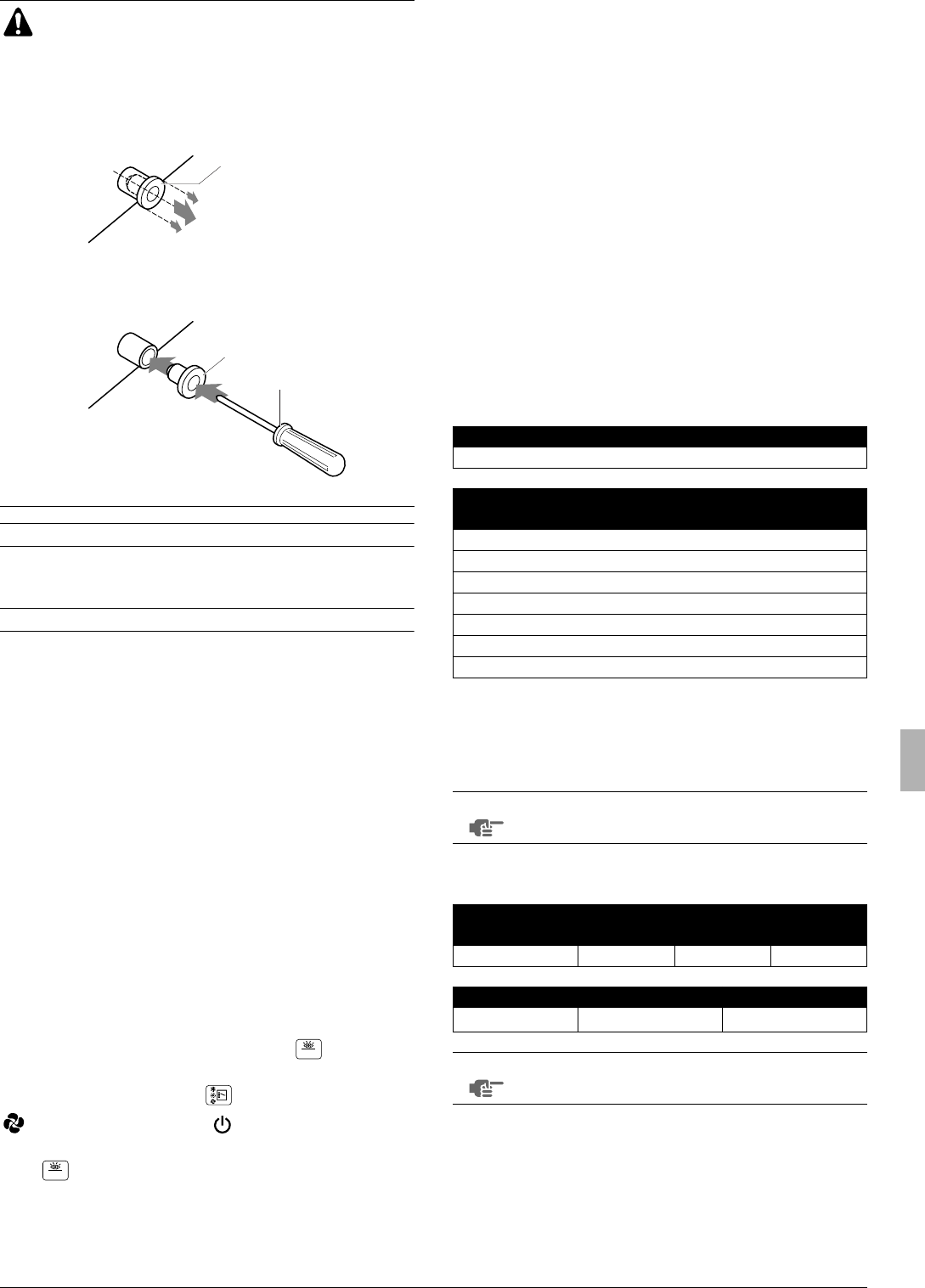

Caution for drain socket

Do not remove the drain pipe plug. Water might leak out.

The drain outlet is only used to discharge water if the drain

pump is not used or before maintenance. Gently put in and

out the drain plug. Excessive force may deform the drain

socket of the drain pan.

■ Pulling out the plug

Do not wiggle the plug up and down

■ Pushing in the plug

Set the plug and push it by using a Philips screwdriver

1 Switch box cover

2 Power supply wiring port

3 Transmission wiring port

4 Wiring diagram

5 Switch box

6 Plastic clamp

7 Remote controller wiring

8 Ter minal board for unit transmission wiring

9 Power supply wiring

10 Indoor PC board

11 Power supply terminal board

12 Earth screw

13 Transmission wiring between units

14 Adaptor for PC board

1

1 Drain plug

1

2

1 Drain plug

2 Philips screwdriver

TEST

TEST

Model Hz Volts Voltage range

S-20~125FM3HPQ 50 230 min. 198-max. 264

power supply Fan motor

Model MCA MFA KW FLA

S-20•25•32FM3HPQ 0.5 16 A 0.05 0.4

S-40FM3HPQ 0.6 16 A 0.065 0.5

S-50FM3HPQ 0.9 16 A 0.085 0.7

S-63FM3HPQ 1.1 16 A 0.125 0.9

S-80FM3HPQ 1.3 16 A 0.135 1.0

S-100FM3HPQ 1.5 16 A 0.135 1.2

S-125FM3HPQ 2.0 16 A 0.225 1.6

NOTE

For details, refer to "Electrical data".

Power supply wiring

Model Field fuses Wire Size

S-20~125FM3HPQ 16 A H05VV-U3G Local codes

Model Wire Size

S-20~125FM3HPQ Sheathed wire (2)

0.75-1.25 mm

2

NOTE

For details, refer to "Wiring example" on page 6.
