5

P

OWER SOURCE

P

OWER CONSUMPTION

5

DISC CD CHANGER

CDC-5506

2

30V 50Hz

2

3 W

D

ESIGNED IN USA

A

SSEMBLED IN CHINA

DIGITAL

OPT

ANALOG

L

R

DIGI LINK

SN.

C

LASS 1 LASER PRODUCT

K

LASSE 1 LASER PRODUKT

L

UOKAN 1 LASER LAITE

K

LASS 1 LASER APPARAT

N18041

A

VIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

WARNING : SHOCK HAZARD-DO NOT OPEN.

4

5

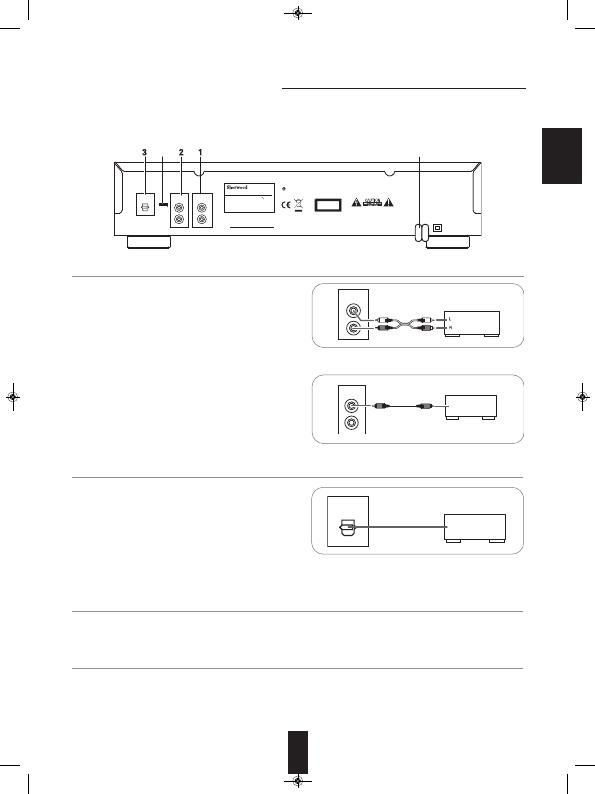

Rear Panel Connections

• Do not plug the AC input cord into the AC outlet when making connections.

• Be sure to connect the white plugs to the L(Left) jacks and the red plugs to the R (Right) jacks when making

connections.

• Refer to the connecting diagram in the operating instructions of your amplifier/receiver

• Connect the ANALOG L and R jacks to the CD IN jacks of

your amplifier/receiver.

1. CONNECTING ANALOG AUDIO OUTS

• Connect this jack to the DIGILINK jack of Sherwood system

amplifier/receiver to control this unit remotely by DIGILINK II

or III system. (For details, refer to the operating instructions of

Sherwood amplifier/receiver.)

■Note :

• The DIGILINK operation may not work on some Sherwood

components.

2. CONNECTING DIGILINK

• Connect this jack to the OPTICAL DIGITAL IN jack of your

amplifier/receiver to enjoy digital sound.

■Notes :

• It is not recommended to record digital audio signals with

digital audio connection between this unit and MD or CD

recorder, etc.. When recording the sounds played on this unit,

record them through the ANALOG AUDIO OUT jacks.

3. CONNECTING OPTICAL DIGITAL OUT

• Plug the cord into a wall AC outlet.

4. AC INPUT CORD

• This terminal may be used in the future to update the operating software, etc.

■Note :

• Programming for upgrade requires specialized programming knowledge and for that reason we recommend that it only be

done by qualified installers.

5. TERMINAL FOR UPGRADE

ANALOG

L

R

Amplifier/receiver

CD IN

Sherwood amplifier/receiver

DIGILINK

DIGI LINK

DIGITAL

OPT

Amplifier/receiver

OPTICAL IN

• Some of the commercially available optical fiber cords cannot be used for the equipment. If there is an optical fiber cord which

cannot be connected to your equipment, consult your dealer or nearest service organization.

ENGLISH

CDC-5506 (G)_ENG_110817:CDC-5506(E)_ENG 2011-08-17 오 5:36 페이지 5
