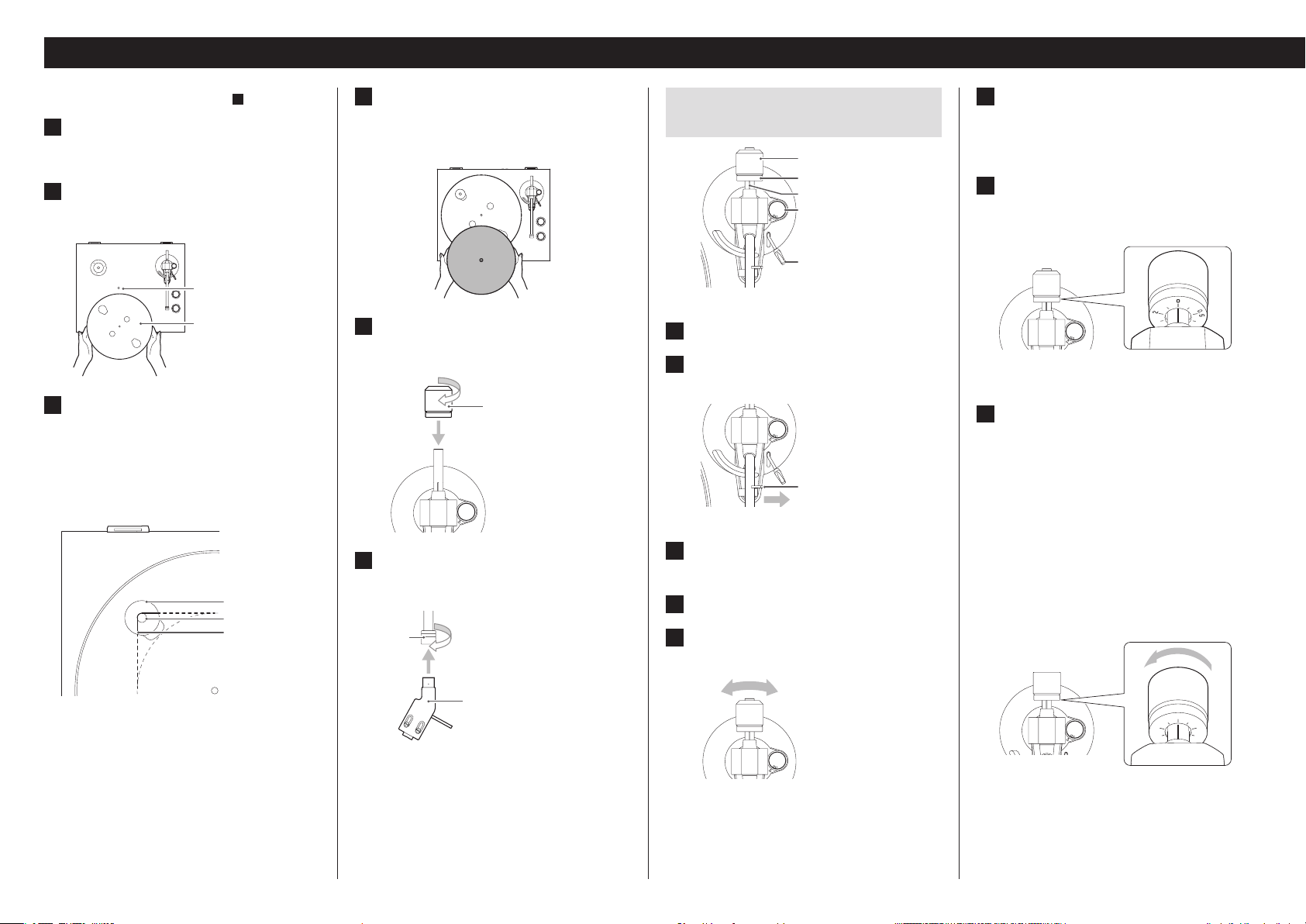

Preparing the record player

Keep the unit in standby while setting it up (

D

on page5).

1 Place it on a at surface.

Since the heights of this unit’s feet cannot be adjusted,

be sure to place it on a flat surface.

2 Install the turntable (platter).

Align the turntable (platter) with the center shaft and

install it.

Center shaft

Turntable (platter)

3 Loop the belt around the motor pulley.

The rubber belt is wrapped around the sub-platter. Use a

finger to pull the rubber belt through the round opening

and loop it around the motor pulley.

o Be careful not to let the rubber become twisted.

o Rotate the turntable (platter) several times to make

sure that it is secure.

Motor pulley

Rubber belt

Round opening

4 Place the felt mat on the turntable

(platter).

Place the mat that is included with the turntable on it

before use.

5 Install the counterweight.

Place the counterweight over the end of the tonearm

and turn it clockwise to tighten it.

Counterweight

6 Install the headshell.

Insert the headshell on the end of the tonearm and turn

the nut to secure it in place.

Headshell

Nut

Balancing the tonearm and adjusting the

tracking force

A

N

T

I

–

S

K

A

T

I

N

G

3

0

Anti-skating dial

Tonearm lifter

Counterweight

Tracking force adjustment ring

Center line

1 Set the anti-skating dial to zero.

2 Move the tonearm clasp to the right to

release the tonearm.

Clasp

A

N

T

I

–

S

K

A

T

I

N

G

3

0

3 Lift the tonearm lifter and shift the

tonearm to the left slightly.

4 Lower the tonearm lifter.

5 Turn the counterweight and adjust so

that the tonearm is level.

A

N

T

I

–

S

K

A

T

I

N

G

3

0

o Remove the protective cap from the cartridge stylus

before adjusting.

o Be careful not to let the cartridge stylus touch the

unit.

6 Return the tonearm to its original posi-

tion, and move the tonearm clasp to the

left to lock it in place.

7 Turn the tracking force adjustment ring

so that the center line aligns with 0 on

the scale.

A

N

T

I

–

S

K

A

T

I

N

G

3

0

o Be careful not to let the counterweight turn.

8 Turn the counterweight so that the track-

ing force adjustment ring scale matches

the tracking force specified for the

cartridge.

o Turn it from 0 in the direction of 0.5 and 1.0.

TN-280BT-A3:

o The tracking force of the included cartridge is 3.5 g.

For 3.5g tracking force, turn the counterweight coun-

terclockwise around one time completely so that

the tracking force adjustment ring passes 0 and then

keep turning it until 1.0 aligns with the center line.

(Do not turn the ring by itself.)

A

N

T

I

–

S

K

A

T

I

N

G

3

0

0

2

1.5

1

0.5

6
